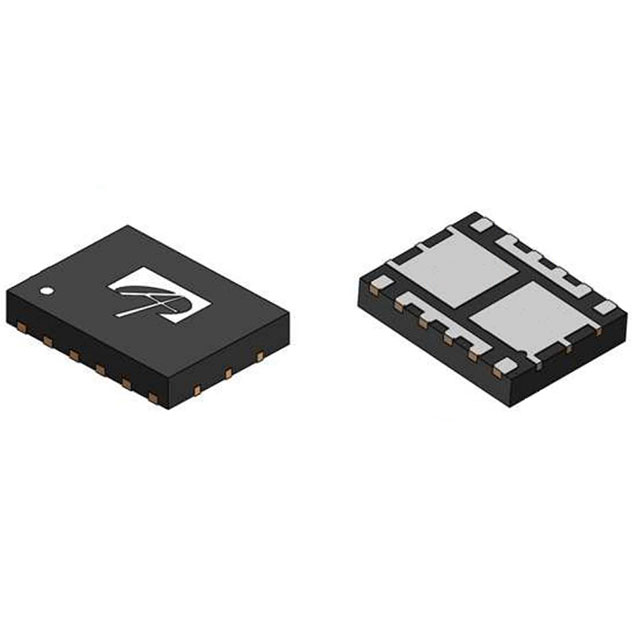

AONL32328

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N/2P-CH 30V 8A/7A 12DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N/2P-CH 30V 8A/7A 12DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AONL32328

Configuration	2 Wide
Current - Continuous Drain (Id) @ 25°C	7 A, 8 A
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	24 nC
Gate Charge (Qg) (Max) @ Vgs	15 nC
Input Capacitance (Ciss) (Max) @ Vds	395 pF, 730 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Power - Max [Max]	2.6 W
Rds On (Max) @ Id, Vgs	21 mOhm
Rds On (Max) @ Id, Vgs	27 mOhm
Supplier Device Package	12-DFN-EP (4x3)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.6 V
Vgs(th) (Max) @ Id	2.4 V

Part	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Vgs(th) (Max) @ Id	Vgs(th) (Max) @ Id	Configuration	Power - Max [Max]	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs
Alpha & Omega Semiconductor Inc. AONL32328	30 V	21 mOhm	27 mOhm	7 A 8 A	-55 °C	150 °C	MOSFET (Metal Oxide)	395 pF 730 pF	12-DFN-EP (4x3)	2.6 V	2.4 V	2 Wide	2.6 W	Surface Mount	24 nC	15 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 30V 8A (Ta), 7A (Ta) 2.6W (Ta) Surface Mount 12-DFN-EP (4x3)

Technical documentation and resources

No documents available
