103911-1

Active

TE Connectivity AMP Connectors

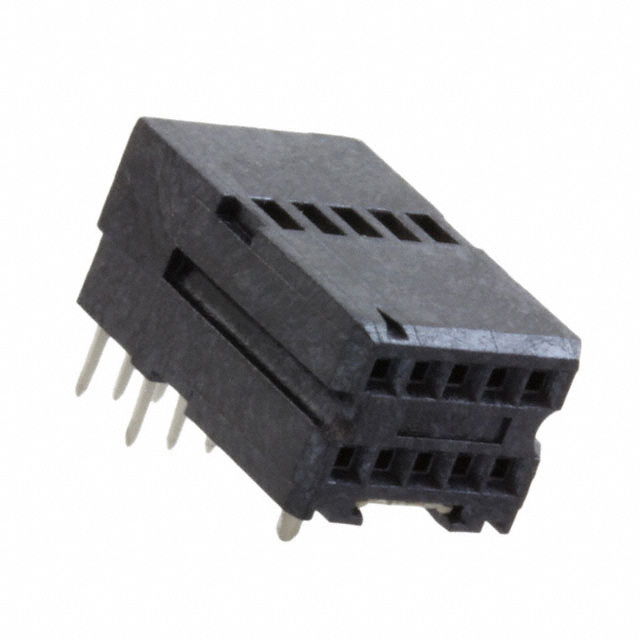

CONN RCPT 10P 0.05 GOLD PCB R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	103911-1	103911 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	10	10 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

103911 Series

CONN RCPT 60P 0.05 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions	Features	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Insulation Color	Termination	Fastening Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape
TE Connectivity AMP Connectors 5-103911-3	150 Áin	3.81 Ám	Receptacle	60	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 5-103911-2	150 Áin	3.81 Ám	Receptacle	20	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 103911-2	150 Áin	3.81 Ám	Receptacle	20	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin-Lead	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 5-103911-1	150 Áin	3.81 Ám	Receptacle	10	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 5-103911-4	150 Áin	3.81 Ám	Receptacle	50	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 5-103911-8			Receptacle	100	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2		Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in
TE Connectivity AMP Connectors 5-103911-7	150 Áin	3.81 Ám	Receptacle	30	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 103911-1	150 Áin	3.81 Ám	Receptacle	10	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin-Lead	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square
TE Connectivity AMP Connectors 103911-5	150 Áin	3.81 Ám	Receptacle	40	Board Guide	30 VAC	0.05 in	1.27 mm	30 Áin	0.76 Ám	Female Socket	All	-65 ░C	105 ░C	2	Copper Alloy	Through Hole, Right Angle	Tin-Lead	2.54 mm	0.1 in	5.51 mm	0.217 in	UL94 V-0	Black	Solder	Push-Pull	Gold	2.54 mm	0.1 in	Square

Description

General part information

103911 Series

10 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
