MCP1700T-3002E/MB

Active

Microchip Technology

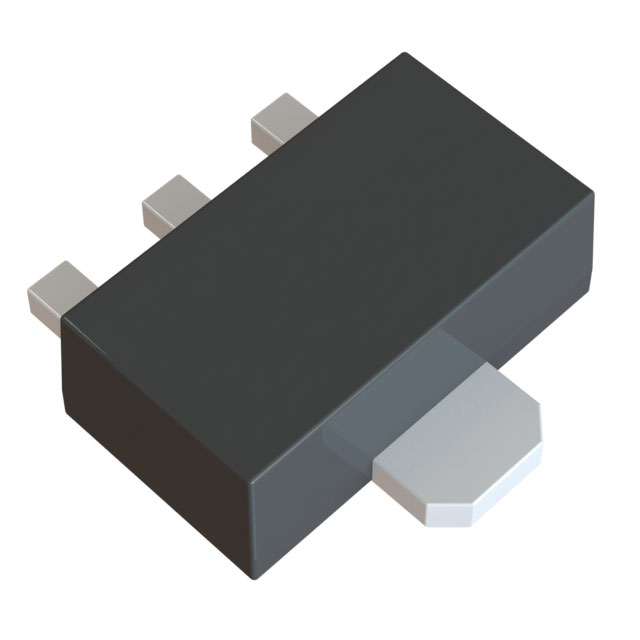

3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PSSO3, PLASTIC, TO-243, SOT-89, 3 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPortable Power Conversion Design Guide Datasheet

MCP1700T-3002E/MB

Active

Microchip Technology

3 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PSSO3, PLASTIC, TO-243, SOT-89, 3 PIN

Deep-Dive with AI

DocumentsPortable Power Conversion Design Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCP1700T-3002E/MB	MCP1700 Series

Current - Output	250 mA	200 - 250 mA
Current - Quiescent (Iq)	4 çA	4 çA
Grade	-	Automotive
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Regulators	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	27.03 °C/W	27.03 °C/W
Package / Case	TO-243AA	TO-243AA, TO-92-3, SOT-23-3, SC-59, TO-236-3, 6-VDFN Exposed Pad
Package / Case	-	TO-226-3, TO-226AA
Protection Features	Over Current, Short Circuit, Over Temperature	Over Current, Short Circuit, Over Temperature
PSRR	44 dB	44 dB
Qualification	-	AEC-Q100
Supplier Device Package	SOT-89-3	SOT-89-3, TO-92-3, SOT-23-3, 6-DFN (2x2)
Voltage - Input (Max) [Max]	6 V	6 V
Voltage - Output (Min/Fixed)	-	1.2 - 5 V
Voltage - Output (Min/Fixed)	-	2.9 V
Voltage Dropout (Max) [Max]	0.35 V	0.35 V
