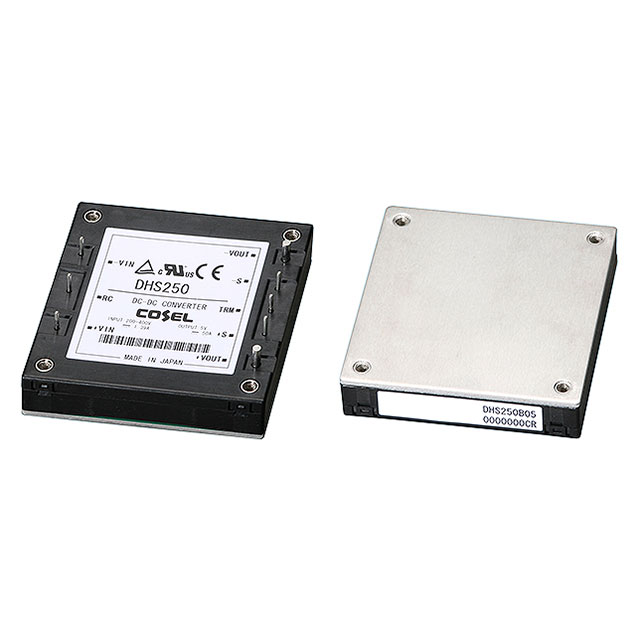

DHS200A12

Active

Cosel USA, Inc.

DC DC CONVERTER 12V 200W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER 12V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output 1	Applications	Package / Case
Cosel USA, Inc. DHS200A12-T	Through Hole	200 W	1	16.7 A	60 V	Isolated Module	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	160 V	-40 °C	100 °C	88 %	12 V	ITE (Commercial)	8-DIP Module
Cosel USA, Inc. DHS200A12	Through Hole	200 W	1	16.7 A	60 V	Isolated Module	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	160 V	-40 °C	100 °C	88 %	12 V	ITE (Commercial)	8-DIP Module
Cosel USA, Inc. DHS200A15-T	Through Hole	201 W	1	13.4 A	60 V	Isolated Module	12.7 mm	2.4 in	61 mm	0.5 in	58.4 mm	2.3 "	160 V	-40 °C	100 °C	88 %	15 V	ITE (Commercial)	8-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 183.74

General part information

Isolated Module DC DC Converter 1 Output 12V 16.7A 60V - 160V Input
