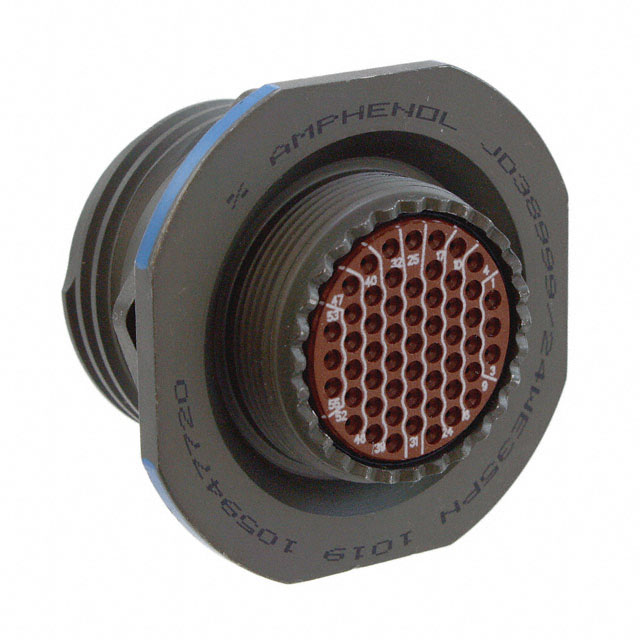

D38999/24WE35PNLC

Active

Amphenol Aerospace Operations

CONN RCPT HSNG MALE 55POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WE35PNLC

Active

Amphenol Aerospace Operations

CONN RCPT HSNG MALE 55POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WE35PNLC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Grade	Military
Housing Color	Olive Drab
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	55 positions
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Type	For Male Pins

D38999/24WE Series

Part	Shielding	Orientation	Shell Finish	Grade	Contact Material	Shell Size, MIL	Shell Material	Contact Finish - Mating	Applications	Ingress Protection	Qualification	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Connector Type	Termination	Mounting Feature	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Contact Type	Contact Size	Contact Size	Housing Color	Contact Shape	Type	Note	Contact Size	Contact Size	Insert Material
Amphenol Aerospace Operations D38999/24WE35HN	Shielded	N	Olive Drab Cadmium	Military	Copper Alloy	E	Aluminum	Gold	Aerospace Aviation Military	Environment Resistant	MIL-DTL-38999 Series III	55 positions	2.54 çm	100 çin	Olive Drab	Male Pins Receptacle	Crimp	Bulkhead - Front Side Nut	Metal	17	35	-65 ░C	347 °F
Amphenol Aerospace Operations D38999/24WE6JN	Shielded	N	Olive Drab Cadmium	Military	Copper Alloy	E	Aluminum	Gold	Aerospace Aviation Military	Environment Resistant	MIL-DTL-38999 Series III	6	2.54 çm	100 çin	Olive Drab	Receptacle Female Sockets	Crimp	Bulkhead - Front Side Nut	Metal			-65 ░C	347 °F	17-6
Amphenol Aerospace Operations D38999/24WE99JA-LC	Shielded	A	Cadmium	Military		E	Aluminum			Environment Resistant	MIL-DTL-38999 Series III	23				Receptacle Housing		Bulkhead - Front Side Nut		17	99	-65 ░C	347 °F		Crimp	16 20	2 21	Olive Drab	Circular	For Female Sockets	Contacts Not Included
Amphenol Aerospace Operations D38999/24WE6HA-LC	Shielded	A	Cadmium	Military		E	Aluminum			Environment Resistant	MIL-DTL-38999 Series III	6				Receptacle Housing		Bulkhead - Front Side Nut				-65 ░C	347 °F	17-6	Crimp			Olive Drab	Circular	For Male Pins	Contacts Not Included	12
Amphenol Aerospace Operations D38999/24WE26SA-LC	Shielded	A	Cadmium	Military		E	Aluminum			Environment Resistant	MIL-DTL-38999 Series III	26				Receptacle Housing		Bulkhead - Front Side Nut		17	26	-65 ░C	347 °F		Crimp			Olive Drab	Circular	For Female Sockets	Contacts Not Included	20
Amphenol Aerospace Operations D38999/24WE8HB	Shielded	B	Olive Drab Cadmium	Military	Copper Alloy	E	Aluminum	Gold	Aviation Marine Military	Environment Resistant	MIL-DTL-38999 Series III	8	2.54 çm	100 çin	Olive Drab	Male Pins Receptacle	Crimp	Bulkhead - Front Side Nut	Metal			-65 ░C	347 °F	17-8
Amphenol Aerospace Operations D38999/24WE2PN-LC	Shielded	N	Cadmium	Military		E	Aluminum			Environment Resistant	MIL-DTL-38999 Series III	1 38				Receptacle Housing		Bulkhead - Front Side Nut				-65 ░C	347 °F	17-2	Crimp			Olive Drab	Circular	For Male Pins	Contacts Not Included		22D 8 Twinax
Amphenol Aerospace Operations D38999/24WE8SN	Shielded	N	Olive Drab Cadmium	Military	Copper Alloy	E	Aluminum	Gold	Aerospace Aviation Marine Military	Environment Resistant	MIL-DTL-38999 Series III	8	1.27 µm	50 µin	Olive Drab	Receptacle Female Sockets	Crimp	Bulkhead - Front Side Nut	Metal			-65 ░C	347 °F	17-8
Amphenol Aerospace Operations D38999/24WE35PNLC	Shielded	N	Cadmium	Military		E	Aluminum			Environment Resistant	MIL-DTL-38999 Series III	55 positions				Receptacle Housing		Bulkhead - Front Side Nut	Metal	17	35	-65 ░C	347 °F		Crimp			Olive Drab	Circular	For Male Pins	Contacts Not Included		22D	Thermoplastic
Amphenol Aerospace Operations D38999/24WE35HA	Shielded	A	Olive Drab Cadmium	Military	Copper Alloy	E	Aluminum	Gold	Aviation Marine Military	Environment Resistant	MIL-DTL-38999 Series III	55 positions	2.54 çm	100 çin	Olive Drab	Male Pins Receptacle	Crimp	Bulkhead - Front Side Nut	Metal	17	35	-65 ░C	347 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

D38999/24WE Series

55 Position Circular Connector Receptacle Housing Panel Mount
