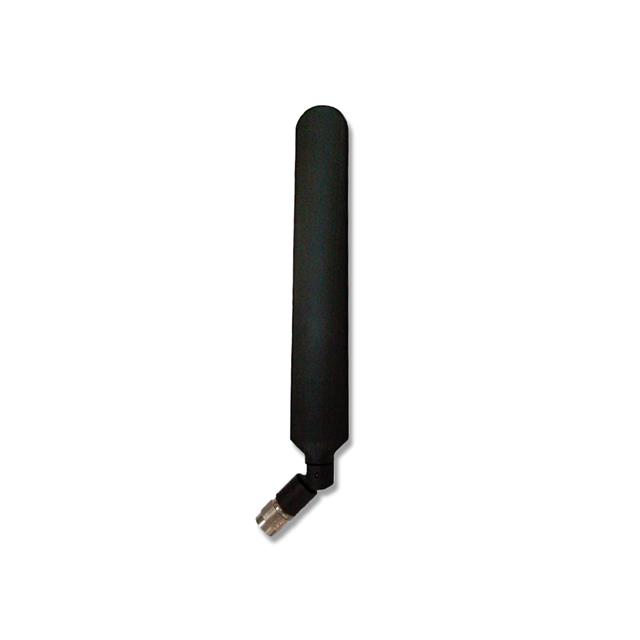

DBA6927C1-FSMAF

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 700/850MHZ WHIP TILT SMA

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 700/850MHZ WHIP TILT SMA

Technical Specifications

Parameters and characteristics for this part

Specification	DBA6927C1-FSMAF

Antenna Type	Tilt, Whip
Applications	LTE, UMTS, AWS, GSM, PCS, WiMax™
Frequency (Center/Band)	2.5 GHz, 1.8 GHz, 2.6 GHz, 900 MHz, 850 MHz, 1.9 GHz, 2.3 GHz, 700 MHz, 2.1 GHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 2.7 GHz
Frequency Range [Min]	698 MHz, 1.71 GHz
Gain	0.5 dBi, 2.2 dBi
Height (Max) [Max]	9.016 in
Height (Max) [Max]	229 mm
Mounting Type	Connector Mount
Number of Bands	2
Power - Max [Max]	3 W
RF Family/Standard	Cellular, WiFi
Termination	SMA Female
VSWR	2.5

Part	Applications	Antenna Type	Gain	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Number of Bands	Frequency Group	VSWR	Power - Max [Max]	RF Family/Standard	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Termination
TE Connectivity Raychem Cable Protection DBA6927C2-FTNCM	AWS GSM LTE PCS UMTS WiMax™	Whip Straight	0.5 dBi 2.2 dBi	1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	9.016 in	229 mm	2	Wide Band	2.5	3 W	Cellular WiFi	Connector Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz
TE Connectivity Raychem Cable Protection DBA6927C1-FSMAF	AWS GSM LTE PCS UMTS WiMax™	Tilt Whip	0.5 dBi 2.2 dBi	1.8 GHz 1.9 GHz 2.1 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	9.016 in	229 mm	2	Wide Band	2.5	3 W	Cellular WiFi	Connector Mount	2.7 GHz 960 MHz	1.71 GHz 698 MHz	SMA Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA AWS, GSM, LTE, PCS, UMTS, WiMax™ Whip, Tilt SMA Female Connector Mount

Technical documentation and resources

No documents available
