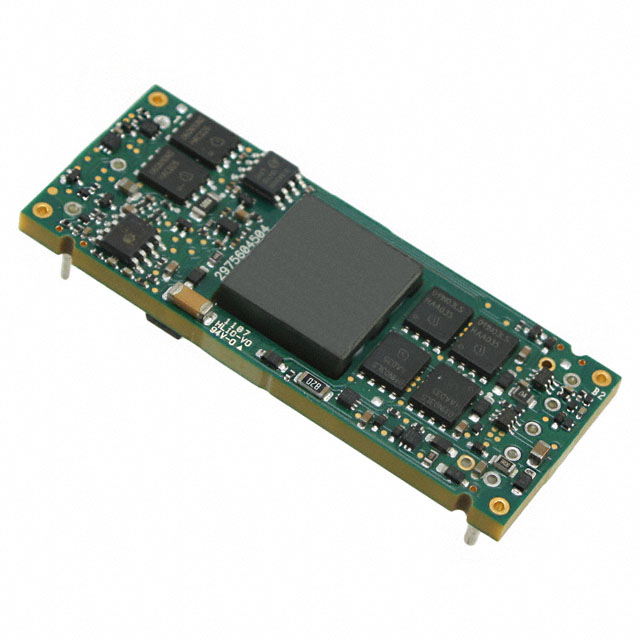

E48SP3R340NRFA

Active

Delta Electronics

DC DC CONVERTER 3.3V 132W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 3.3V 132W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Control Features	Power (Watts)	Type	Package / Case	Current - Output (Max) [Max]	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
Delta Electronics E48SP12020NRFA	58.4 mm	0.43 "	10.9 mm	0.9 "	22.9 mm	2.3 in	94.5 %	Active Low Enable	240 W	Isolated Module	1/8 Brick 5-DIP Module	20 A	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	122 °C	-40 °C	Through Hole	2250 VDC	1	12 V	75 V	36 V
Delta Electronics E48SP12020NRFB	58.4 mm	0.43 "	10.9 mm	0.9 "	22.9 mm	2.3 in	94.5 %	Active Low Enable	240 W	Isolated Module	1/8 Brick 5-DIP Module	20 A	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	122 °C	-40 °C	Through Hole	2250 VDC	1	12 V	60 V	36 V
Delta Electronics E48SP3R340NRFA	58.4 mm	0.43 "	10.9 mm	0.9 "	22.9 mm	2.3 in		Active Low Enable	132 W	Isolated Module	1/8 Brick 8-DIP Module	40 A	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	117 °C	-40 °C	Through Hole	2250 VDC	1	3.3 V	75 V	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	126	$ 50.42

General part information

Isolated Module DC DC Converter 1 Output 3.3V 40A 36V - 75V Input
