104128-3

Active

TE Connectivity AMP Connectors

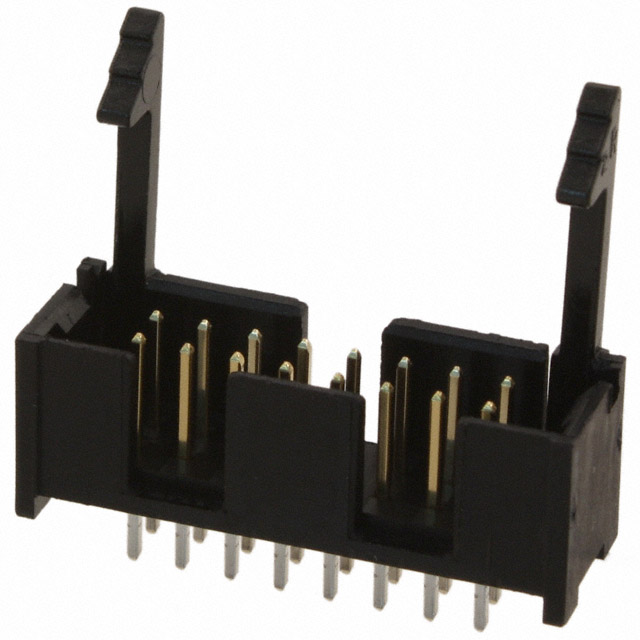

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

104128-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104128-3	104128 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	0.385 in	0.385 in
Insulation Height	9.78 mm	9.78 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	10 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.80
		10	$ 5.93
		88	$ 5.61
		440	$ 5.24
		968	$ 4.93

104128 Series

CONN HEADER VERT 30POS 2.54MM

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Contact Finish - Mating	Contact Type	Contact Material	Style	Termination	Features	Connector Type	Number of Positions	Fastening Type	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
TE Connectivity AMP Connectors 1-104128-2	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	30	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-104128-0	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	60	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-9	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	50	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-7	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	40	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-1	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	10	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-6	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	34	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-5	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header	26	Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in
TE Connectivity AMP Connectors 104128-3	0.12 in	3.05 mm	Glass Filled, Nylon, Polyamide (PA)	All	0.1 in	2.54 mm	Tin-Lead	250 VAC	Gold or Gold-Palladium	Male Pin	Brass	Board to Cable/Wire	Solder	Keying Slot	Header		Latch Lock/Eject Hooks, Long	Black	Shrouded - 4 Wall	-65 ░C	105 ░C	6.1 mm	0.24 in	2.54 µm	100 µin	2	UL94 V-0	1 A	30 Áin	0.76 Ám	0.385 in	9.78 mm	Square	Through Hole	2.54 mm	0.1 in	16

Description

General part information

104128 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
