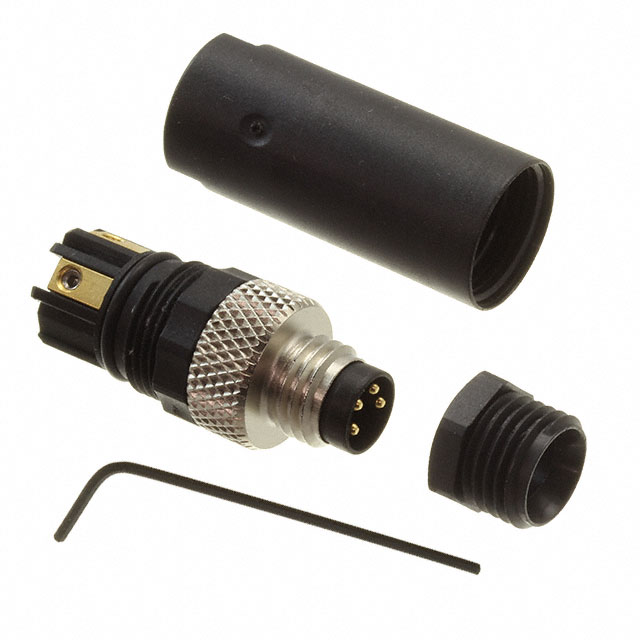

V31S-GM

Active

PEPPERL+FUCHS

SENSOR CONNECTOR, M8, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

SENSOR CONNECTOR, M8, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V31S-GM	V31S-GM Series

Applications	Industrial Automation	Industrial Automation
Backshell Material, Plating	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Nylon 6, Polyamide (PA6)
Cable Opening [Max] [diameter]	5 mm	5 mm
Cable Opening [Max] [diameter]	0.197 in	0.197 in
Cable Opening [Min] [diameter]	3.5 mm	2.5 - 3.5 mm
Cable Opening [Min] [diameter]	0.138 in	0.098 - 0.138 in
Color	Black, Silver	Black, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Zinc	Copper Zinc, Copper Tin
Current Rating (Amps)	4 A	4 A
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP67, IP65
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Zinc	Copper Zinc, Brass
Shell Size - Insert	M8-4	M8-4
Shielding	Unshielded	Unshielded
Termination	Screw	Screw, IDC
Voltage Rating	70 VDC	30 - 70 VDC

SENSOR CONNECTOR, M8, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Part	Shell Material	Backshell Material, Plating	Contact Finish - Mating	Shielding	Applications	Primary Material	Termination	Current Rating (Amps)	Ingress Protection	Features	Number of Positions	Connector Type	Shell Size - Insert	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shell Finish	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material
PEPPERL+FUCHS V31S-GM	Copper Zinc	Polybutylene Terephthalate (PBT)	Gold	Unshielded	Industrial Automation	Metal	Screw	4 A	IP67 - Dust Tight, Waterproof	Backshell	4	Male Pins, Plug	M8-4	UL94 V-0	Black, Silver	85 °C	-40 °C	70 VDC	Nickel	Free Hanging (In-Line)	5 mm	3.5 mm	0.197 in	0.138 in	Copper Zinc
PEPPERL+FUCHS V31S-GM-Q4	Brass	Nylon 6, Polyamide (PA6)	Gold	Unshielded	Industrial Automation	Metal	IDC	4 A	IP65, IP67	Backshell	4	Male Pins, Plug	M8-4		Black, Silver	80 C	-25 °C	30 VAC	Nickel	Free Hanging (In-Line)	5 mm	2.5 mm	0.197 in	0.098 in	Copper Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
