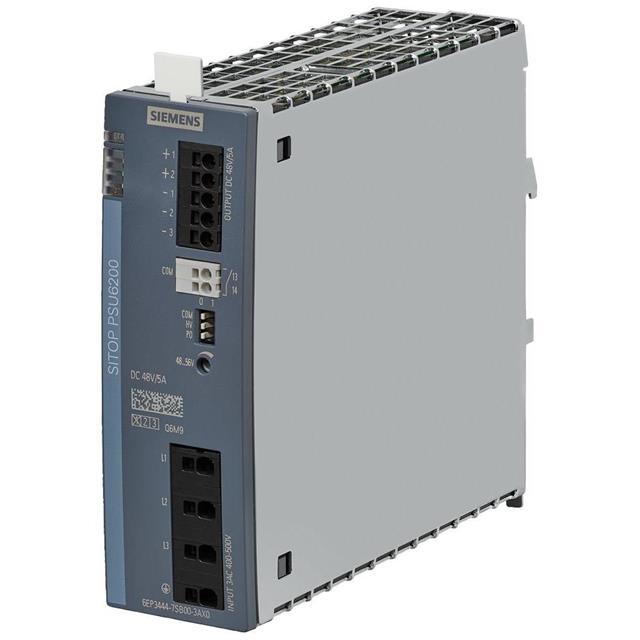

6EP34447SB003AX0 - 6EP34447SB003AX0

6EP34447SB003AX0

Active
Siemens

SITOP PSU6200/3AC/DC48V/5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies BrochurePower Supplies Decision Guide+2
6EP34447SB003AX0 - 6EP34447SB003AX0

6EP34447SB003AX0

Active
Siemens

SITOP PSU6200/3AC/DC48V/5A

Deep-Dive with AI

DocumentsPower Supplies BrochurePower Supplies Decision Guide+2

Technical Specifications

Parameters and characteristics for this part

Specification6EP34447SB003AX0
AC Voltage - Input [Max]576 VAC
AC Voltage - Input [Min]323 VAC
ApplicationsIndustrial, ITE (Commercial)
Approval AgencyCE, CSA, cCSAus, EAC, cULus
Current - Output (Max) [Max]5 A
DC Voltage - Input (Max) [Max]600 V
DC Voltage - Input (Min) [Min]450 V
Efficiency95.6 %
FeaturesAdjustable Output
Input TypeAC or DC
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-30 ░C
Power (Watts)240 W
Size / Dimension [x]5.31 "
Size / Dimension [x]135 mm
Size / Dimension [y]1.77 "
Size / Dimension [y]45 mm
Size / Dimension [z]5.31 "
Size / Dimension [z]135 mm
Standard Number62368-1, 60950-1, UL 508
Voltage - Output 148 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 381.43

Description

General part information

6EP34447 Series

SITOP PSU6200/3AC/DC48V/5A
