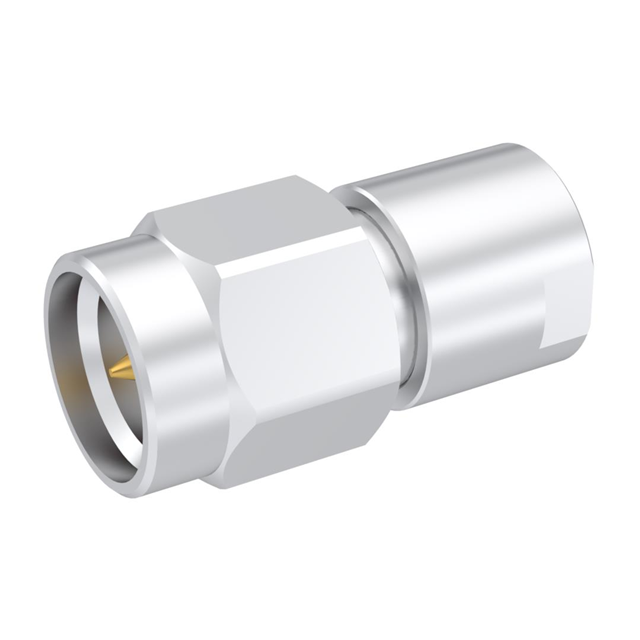

R404210150

Obsolete

Radiall USA, Inc.

PRECISION TERMINATION: SMA M 18G

Search across all available documentation for this part.

Obsolete

Radiall USA, Inc.

PRECISION TERMINATION: SMA M 18G

Technical Specifications

Parameters and characteristics for this part

Specification	R404210150

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	22 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Frequency - Max [Max]	Dielectric Material	Connector Type	Mounting Type	Contact Material	Impedance	Body Material	Connector Style	Contact Finish
Radiall USA, Inc. R404210161	18 GHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Cap Free Hanging	Beryllium Copper	50 Ohms	Stainless Steel	SMA
Radiall USA, Inc. R404216150	26.5 GHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Cap Free Hanging	Beryllium Copper	50 Ohms	Stainless Steel	SMA	Gold
Radiall USA, Inc. R404210150	22 GHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Cap Free Hanging	Beryllium Copper	50 Ohms	Stainless Steel	SMA	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms

Technical documentation and resources

No documents available
