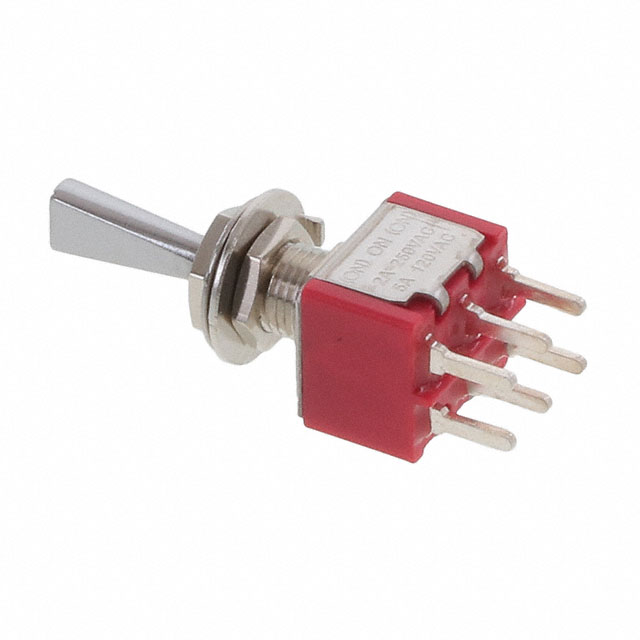

100DP8T6B11M2QEH

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SP3T 5A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SP3T Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	100DP8T6B11M2QEH	100DP8 Series

Actuator Length [x]	12.3 mm	10.41 - 12.3 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Flat Anti-Rotation	Standard Round, Flat Anti-Rotation
Bushing Thread	1/4-40	1/4-40
Circuit	SP3T	SP3T
Current Rating (Amps)	5 A	5 A
Electrical Life	40000 Cycles	40000 Cycles
Features	Jumper needed to achieve triple throw	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 in
Switch Function	Mom-On-Mom	Mom-On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	120 V	120 V
Voltage Rating - DC	28 V	28 V

SWITCH TOGGLE DP3T 5A 120V

Part	Termination Style	Circuit	Bushing Thread	Electrical Life	Switch Function	Features	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Voltage Rating - DC	Current Rating (Amps)	Actuator Length [x]	Illumination	Actuator Type
E-Switch 100DP8T1B9VS21QE	PC Pin	SP3T	1/4-40	40000 Cycles	Mom-On-Mom	Jumper needed to achieve triple throw	Through Hole	0.25 in	120 V	-30 ░C	85 °C	Brass, Chrome Plated	28 V	5 A	10.41 mm	Non-Illuminated	Standard Round
E-Switch 100DP8T6B11M2QEH	PC Pin	SP3T	1/4-40	40000 Cycles	Mom-On-Mom	Jumper needed to achieve triple throw		0.25 in	120 V	-30 ░C	85 °C	Brass, Chrome Plated	28 V	5 A	12.3 mm	Non-Illuminated	Flat Anti-Rotation
E-Switch 100DP8T1B1M2QE	PC Pin	SP3T	1/4-40	40000 Cycles	Mom-On-Mom	Jumper needed to achieve triple throw	Through Hole	0.25 in	120 V	-30 ░C	85 °C	Brass, Chrome Plated	28 V	5 A	10.41 mm	Non-Illuminated	Standard Round
