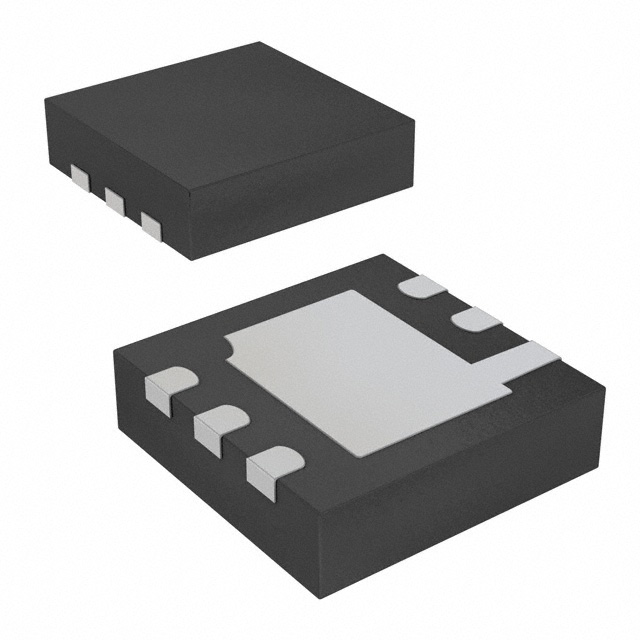

LDLN015PU10R

Obsolete

STMicroelectronics

IC REG LINEAR 1V 150MA 6DFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC REG LINEAR 1V 150MA 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	LDLN015PU10R

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	60 µA
Current - Supply (Max) [Max]	120 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	6-UFDFN Exposed Pad
Protection Features	Over Current, Over Temperature
PSRR [Max]	92 dB
PSRR [Min]	50 dB
Supplier Device Package	6-DFN (2x2)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1 V

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Number of Regulators	Current - Supply (Max) [Max]	PSRR [Min]	PSRR [Max]	Mounting Type	Package / Case	Supplier Device Package	Current - Output	Output Type	Voltage - Input (Max) [Max]	Output Configuration	Protection Features	Voltage Dropout (Max) [Max]
STMicroelectronics LDLN015PU10R	Enable	125 °C	-40 °C	1 V	60 µA	1	120 µA	50 dB	92 dB	Surface Mount	6-UFDFN Exposed Pad	6-DFN (2x2)	150 mA	1.81 mOhm	5.5 V	Positive	Over Current Over Temperature
STMicroelectronics LDLN015PU25R	Enable	125 °C	-40 °C	2.5 V	60 µA	1	120 µA	50 dB	92 dB	Surface Mount	6-UFDFN Exposed Pad	6-DFN (2x2)	150 mA	1.81 mOhm	5.5 V	Positive	Over Current Over Temperature	0.18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-DFN (2x2)
