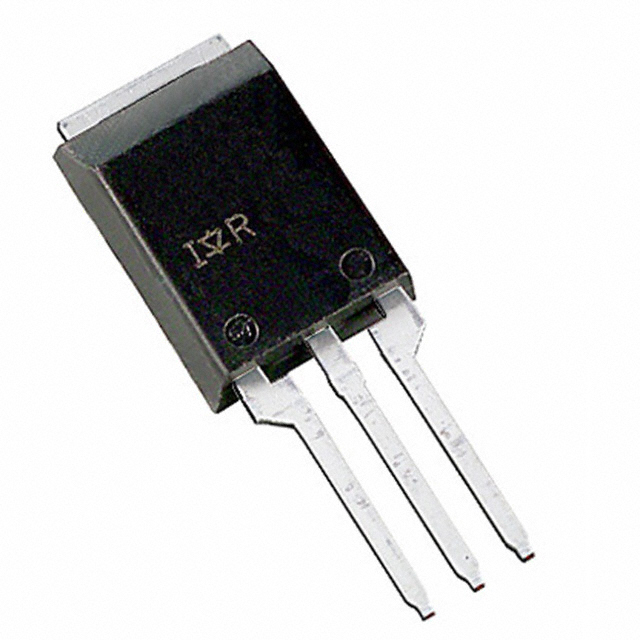

IRLBA1304

Obsolete

Infineon Technologies

MOSFET N-CH 40V 185A SUPER-220

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET N-CH 40V 185A SUPER-220

Technical Specifications

Parameters and characteristics for this part

Specification	IRLBA1304

Current - Continuous Drain (Id) @ 25°C	185 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	140 nC
Input Capacitance (Ciss) (Max) @ Vds	7660 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-273AA
Power Dissipation (Max) [Max]	300 W
Rds On (Max) @ Id, Vgs	4 mOhm
Supplier Device Package	SUPER-220™ (TO-273AA)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	16 V
Vgs(th) (Max) @ Id	1 V

Part	Supplier Device Package	Package / Case	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Vgs (Max)	Technology	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds
Infineon Technologies IRLBA1304	SUPER-220™ (TO-273AA)	TO-273AA	Through Hole	185 A	140 nC	40 V	4 mOhm	16 V	MOSFET (Metal Oxide)	N-Channel	4.5 V 10 V	1 V	-55 °C	175 ░C	300 W	7660 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 40 V 185A (Tc) 300W (Tc) Through Hole SUPER-220™ (TO-273AA)
