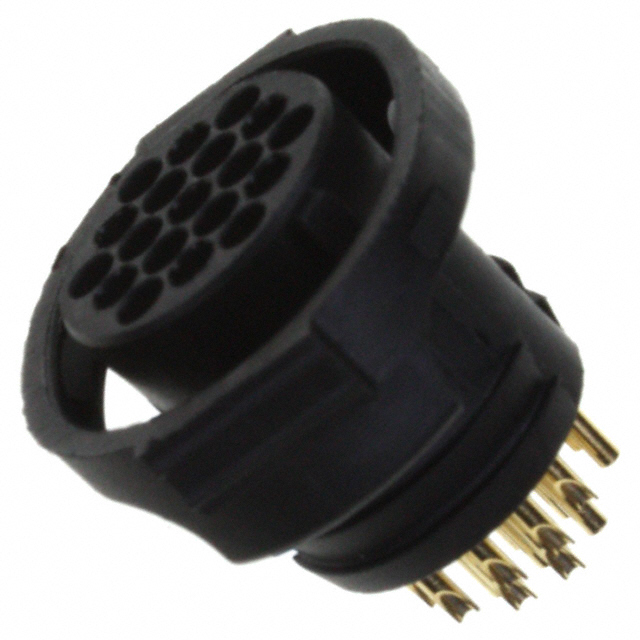

1445777-1

Obsolete

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 19P SOLDER CUP

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 19P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	1445777-1

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Features	Spring Probe
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature	105 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M13.5
Voltage Rating	250 VDC

Part	Voltage Rating	Connector Type	Orientation	Number of Positions	Primary Material	Contact Finish - Mating	Fastening Type	Mounting Type	Shell Size - Insert	Features	Ingress Protection	Current Rating (Amps)	Operating Temperature	Number of Positions
TE Connectivity Raychem Cable Protection 1445777-8	250 VDC	Female Sockets Plug	Keyed	16	Plastic	Gold	Latch Lock	Free Hanging (In-Line)	M13.5	Spring Probe	IP65 - Dust Tight Water Resistant	2 A	105 °C
TE Connectivity Raychem Cable Protection 1445777-1	250 VDC	Female Sockets Plug	Keyed		Plastic	Gold	Latch Lock	Free Hanging (In-Line)	M13.5	Spring Probe	IP65 - Dust Tight Water Resistant	2 A	105 °C	19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
