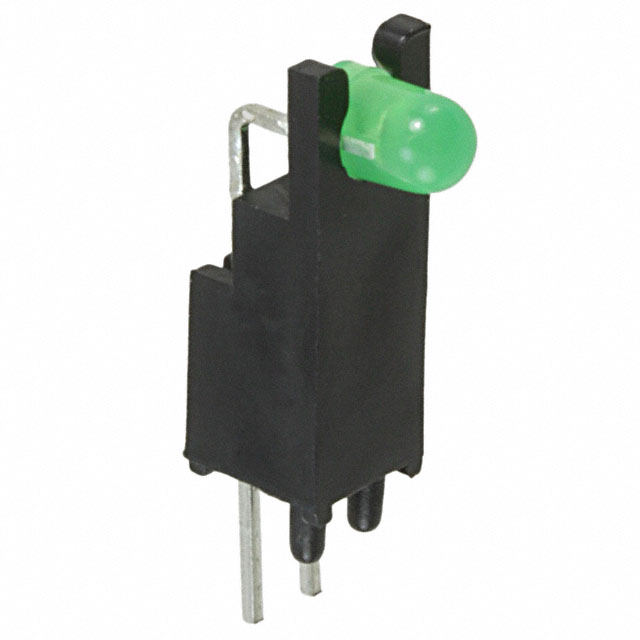

WP934ZH/GD

Active

Kingbright

LED CBI 3MM GRN DIFF RA

Find alt

Alpha

WP934ZH/GD

Active

Kingbright

LED CBI 3MM GRN DIFF RA

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

WP934 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 25mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	WP934ZH/GD

Color	Green
Configuration	Single
Current	25 mA
Lens Size	3 mm
Lens Size (Code)	T-1
Lens Style	Round, Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	30 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	40 °
Voltage Rating	2.2 V
Wavelength - Peak	565 nm

WP934 Series

Part	Mounting Type	Configuration	Current	Lens Size	Lens Size (Code)	Viewing Angle	Voltage Rating	Color	Lens Style	Lens Type	Millicandela Rating	Wavelength - Peak	Color Count	Lens Diameter	Wide	Configuration Count
Kingbright WP934RS/ID	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	30 mcd	627 nm
Kingbright WP934TV/4LID	Right Angle Through Hole		30 mA			40 °	1.7 V	Red	Domed Top Round	Diffused Tinted	0.6 mcd	625 nm	4 count	2.9 mm	4
Kingbright WP934SB/4YD	Right Angle Through Hole	High	30 mA	3 mm	T-1	40 °	2.1 V	Yellow	Domed Top Round	Diffused Tinted	15 mcd	590 nm	4 count			4
Kingbright WP934SB/4LGD	Right Angle Through Hole	High	25 mA			40 °	1.9 V	Green	Domed Top Round	Diffused Tinted	2 mcd	568 nm	4 count	2.9 mm		4
Kingbright WP934RS/GD	Right Angle Through Hole	Single	25 mA	3 mm	T-1	40 °	2.2 V	Green	Domed Top Round	Diffused Tinted	30 mcd	565 nm
Kingbright WP934EW/SRD	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	1.85 V	Red	Domed Top Round	Diffused Tinted	400 mcd	655 nm
Kingbright WP934EB/2ID	Right Angle Through Hole	High	20 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	22.5 mcd	627 nm	2 count			2
Kingbright WP934EW/ID	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2 V	Red	Domed Top Round	Diffused Tinted	30 mcd	627 nm
Kingbright WP934EW/YD	Right Angle Through Hole	Single	30 mA	3 mm	T-1	40 °	2.1 V	Yellow	Domed Top Round	Diffused Tinted	15 mcd	590 nm
Kingbright WP934EB/2SURDK	Right Angle Through Hole	High	20 mA			50 °	1.95 V	Red	Domed Top Round	Diffused Red	900 mcd	645 nm		2.9 mm		2
