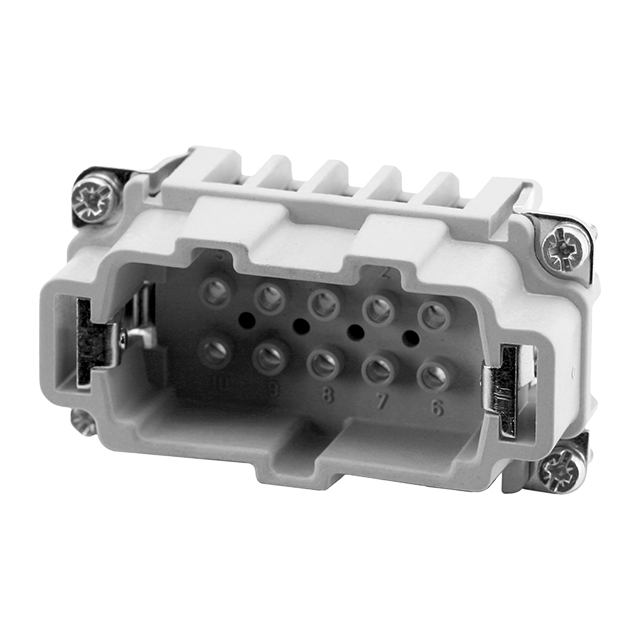

C14610A0105001

Active

Amphenol Tuchel Industrial

INSERT MALE 10POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 10POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0105001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	heavy\|mate®, C146 E, EE
Current Rating (Amps)	10 A
Gender	Male
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E10
Termination Style	Crimp
Voltage Rating	600 V

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Size	Termination Style	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Color	Contact Finish	Contact Material	Contact Type	Connector Type	Housing Material
Amphenol Tuchel Industrial C14610A0101021	10+Ground	125 °C	-40 °C	Male	E10	Screw	UL94 V-0	600 V	10 A	Gray	Silver	Brass
Amphenol Tuchel Industrial C14610A0100001	10+Ground	125 °C	-40 °C	Male	E10	Crimp	UL94 V-0	600 V	10 A	Gray			C 16-3	Insert without Contacts
Amphenol Tuchel Industrial C14610A0100021	10+Ground	125 °C	-40 °C	Male	E10	Screw	UL94 V-0	600 V	10 A	Gray	Silver	Brass
Amphenol Tuchel Industrial C14610A0100024	10+Ground	100 °C	-40 °C	Male	A10	Screw	UL94 V-0	250 VDC	14 A		Silver	Brass			Polybutylene Terephthalate (PBT)
Amphenol Tuchel Industrial C14610A0105001	10+Ground	125 °C	-40 °C	Male	E10	Crimp	UL94 V-0	600 V	10 A	Gray			heavy\|mate® C146 E EE	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.62

General part information

Male Insert without Contacts Gray 10+Ground Position Crimp
