Q-2P05G0005060I
ActiveAmphenol Custom Cable

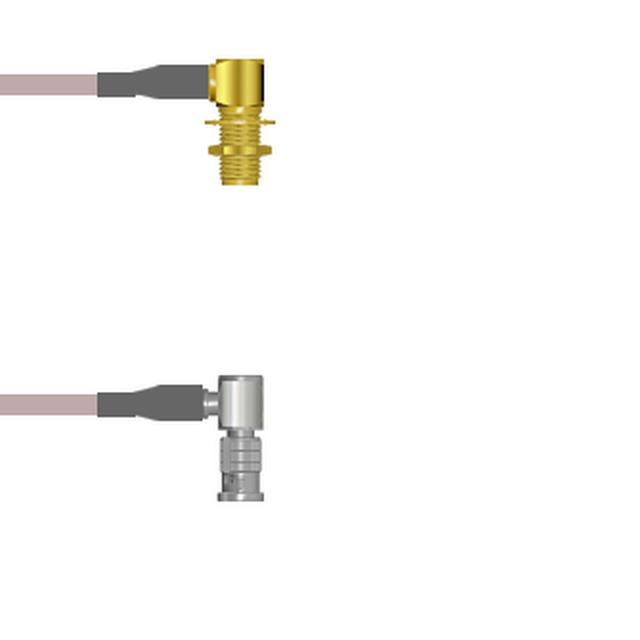

COAX CBL HD-BNC TO SMA 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2P05G0005060I
ActiveAmphenol Custom Cable
COAX CBL HD-BNC TO SMA 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2P05G0005060I |
|---|---|
| 1st Connector | HD-BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 12.4 GHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 194.83 | |
| 25 | $ 191.06 | |||
| 50 | $ 187.29 | |||
| 100 | $ 183.52 | |||
| 250 | $ 179.75 | |||
Description
General part information
Q-2P05G0 Series
Cable Assembly Coaxial HD-BNC to SMA RG-316 60.0" (1.5m) 5.0'
