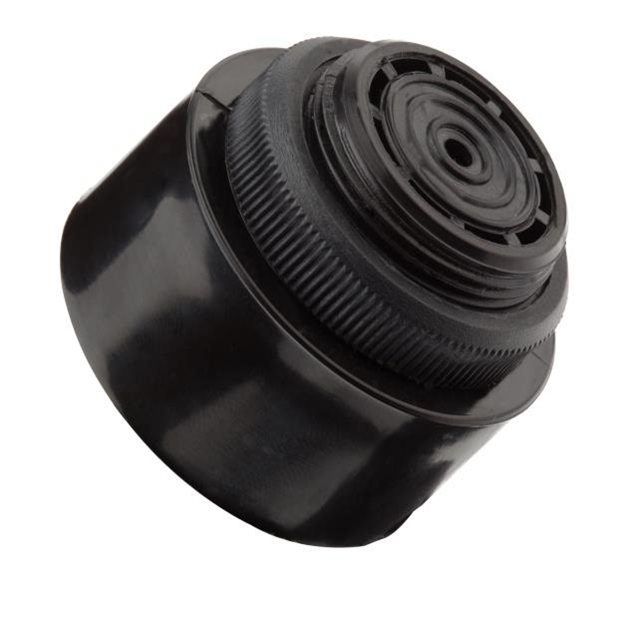

FM-12B-901A

Active

East Electronics

BUZZER 12V 43MM TH

Search across all available documentation for this part.

Active

East Electronics

BUZZER 12V 43MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER 12V 43MM TH

Part	Frequency	Sound Pressure Level (SPL)	Current - Supply	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Mode	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
East Electronics FM-12B-901A	2.9 kHz	90 dB	32 mA	PC Pins	32.8 mm	1.291 in	Fast, Pulse	12 VDC	43 mm	1.693 in	6 VDC	28 VDC	Through Hole	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers 12 V 32mA 2.9kHz 90dB @ 12V, 60cm Through Hole PC Pins
