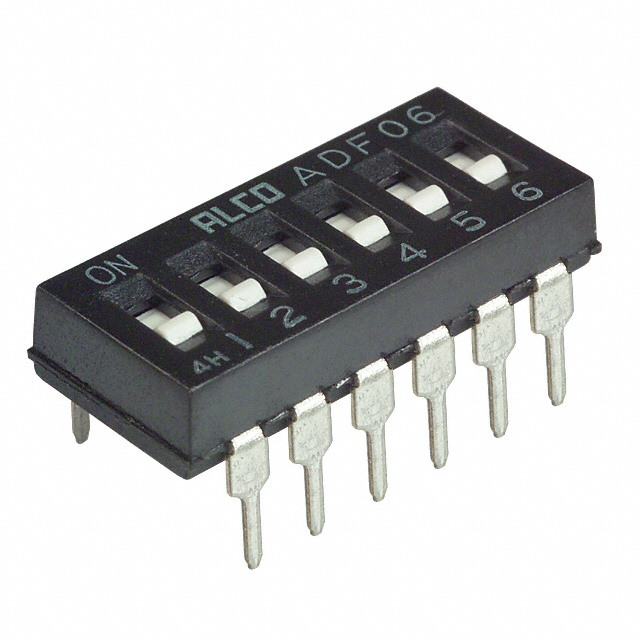

ADF06

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Body Material	Actuator Level	Height Above Board	Height Above Board	Actuator Type	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Circuit	Termination Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Washable	Length [x]	Length [x]	Contact Finish	Current Rating (Amps)	Mounting Type	Electrical Life	Number of Positions	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection ADF06S	1000 Cycles	Polyphenylene Sulfide (PPS)	Flush Recessed	0.177 in	4.5 mm	Slide (Standard)	24 VDC	0.1 in	Full	2.54 mm	SPST	Gull Wing	Copper Alloy	-30 ░C	85 °C		0.678 in	17.22 mm	Gold	25 mA	Surface Mount	1000 Cycles	6
TE Connectivity Raychem Cable Protection ADF06	1000 Cycles	Polyphenylene Sulfide (PPS)	Flush Recessed			Slide (Standard)	24 VDC	0.1 in	Full	2.54 mm	SPST	PC Pin	Copper Alloy	-30 ░C	85 °C		0.678 in	17.22 mm	Gold	25 mA	Through Hole	1000 Cycles	6	0.189 in	4.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

No documents available
