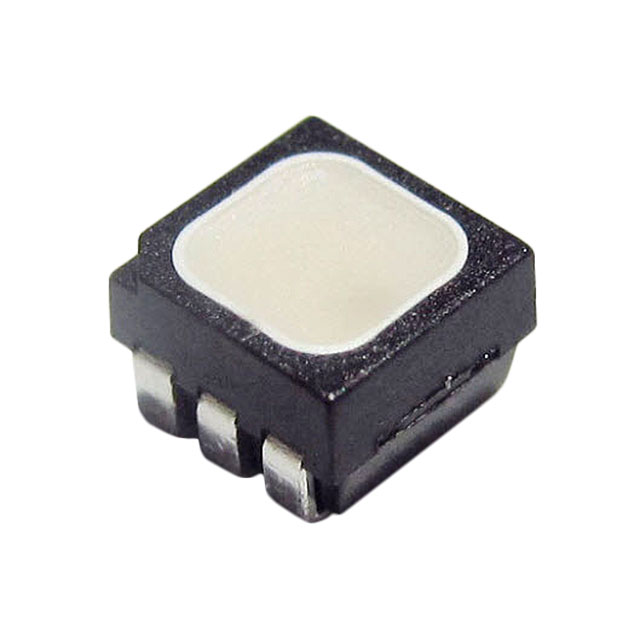

CLX6B-FKC-CN1R1J1BB7D3D3

Obsolete

Cree LED

LED RGB DIFFUSED 6PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED RGB DIFFUSED 6PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CLX6B-FKC-CN1R1J1BB7D3D3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	2.6 mm
Lens Color	White
Lens Style	Square with Flat Top
Lens Transparency	Diffused
Millicandela Rating	2300 mcd, 675 mcd, 1150 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm

LED RGB DIFFUSED 6PLCC SMD

Part	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Configuration	Color	Lens Style	Mounting Type	Lens Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Supplier Device Package	Lens Transparency	Height (Max) [Max] [z]	Wavelength - Dominant
Cree LED CLX6B-FKC-CN1R1J1BB7D3D3	6-SMD, J-Lead	2.1 V	3.2 V	3 V	675 mcd, 1150 mcd, 2300 mcd	Independent	Blue, Green, Red	Square with Flat Top	Surface Mount	White	20 mA	20 mA	20 mA	6-PLCC	Diffused	2.6 mm	470 nm, 530 nm, 622 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.2V Blue 6-SMD, J-Lead
