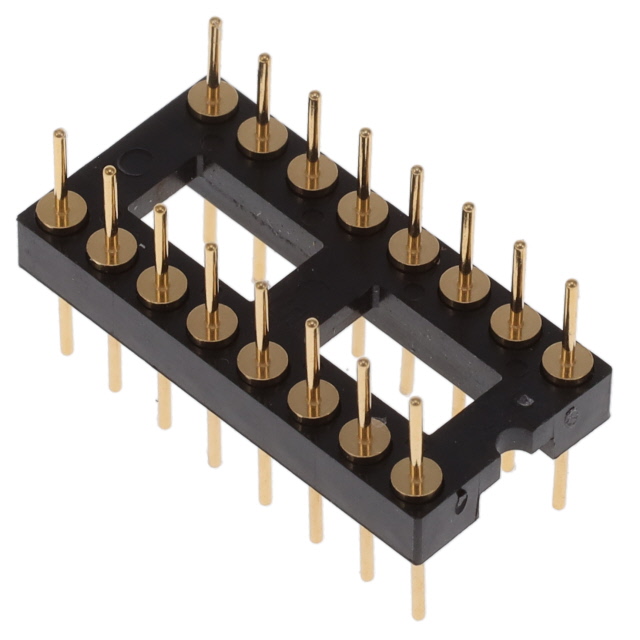

APA-316-G-A1

Active

Samtec Inc.

ADAPTER PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APA-316-G-A1

Active

Samtec Inc.

ADAPTER PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APA-316-G-A1

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	20 µin
Contact Finish Thickness - Post	0.51 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder

APA-316 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Post	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Mounting Type	Features	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Material Flammability Rating	Contact Material - Mating	Housing Material
Samtec Inc. APA-316-G-A	0.51 µm	20 µin	Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Gold	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-B			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-M			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-A			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-J			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-G-J	0.51 µm	20 µin	Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Gold	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-P			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-G-B	0.51 µm	20 µin	Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Gold	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-T-A1			Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Tin	0.1 in	2.54 mm				UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled
Samtec Inc. APA-316-G-A1	0.51 µm	20 µin	Phosphor Bronze	2.54 mm	0.1 in	16	Through Hole	Open Frame	Solder	Gold	0.1 in	2.54 mm	20 µin	0.51 µm	Gold	UL94 V-0	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.26
		10	$ 7.87
		100	$ 6.13
		500	$ 5.20
		1000	$ 4.87

Description

General part information

APA-316 Series

16 (2 x 8) Pos Socket Gold Through Hole
