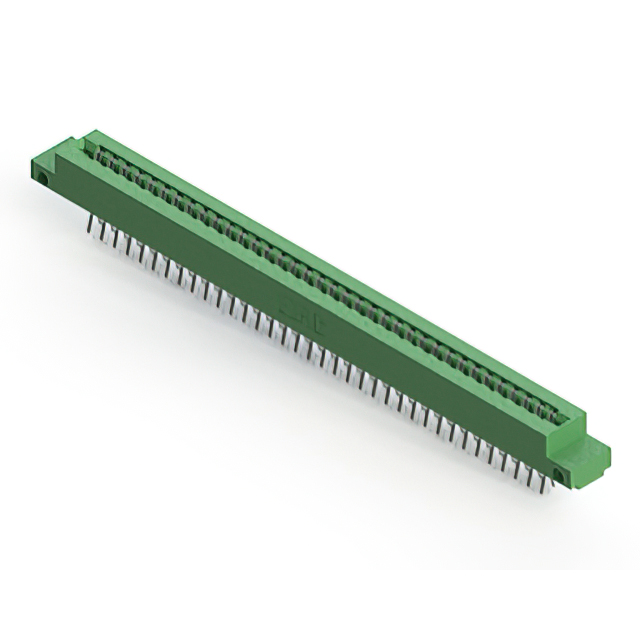

807-072-460-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-072-460-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-072-460-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
807-072 Series
| Part | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Contact Material | Termination | Gender | Read Out | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Termination Rows | Color | Number of Positions | Mounting Type | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Wire Wrap | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | Green | 72 | Through Hole | |||
EDAC Inc. | Semi Bellows | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | Side Mount Opening Unthreaded | Tin | 2 | Green | 72 | Board Edge Straddle Mount | 3.25 mm | 0.128 in | Card Extender | ||||
EDAC Inc. | Semi Bellows | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Single | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Tin | 2 | Green | 72 | Through Hole Right Angle | |||||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Single | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | Side Mount Opening Unthreaded | Gold | 2 | Green | 72 | Through Hole Right Angle | 3.25 mm | 0.128 in | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | Green | 72 | Through Hole | |||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | Gold | 2 | Green | 72 | Board Edge Straddle Mount | Card Extender | |||||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | Green | 72 | Board Edge Straddle Mount | Card Extender | ||
EDAC Inc. | Semi Bellows | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Tin | 2 | Green | 72 | Board Edge Straddle Mount | Card Extender | ||||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | Green | 72 | Board Edge Straddle Mount | Card Extender | ||||
EDAC Inc. | Semi Bellows | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Copper Alloy | Solder | Female | Dual | 0.156 in | 3.96 mm | 125 °C | -40 °C | 36 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | 2 | Green | 72 | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 124.88 | |
Description
General part information
807-072 Series
72 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
