325310-09-0
ActiveCurtis Industries

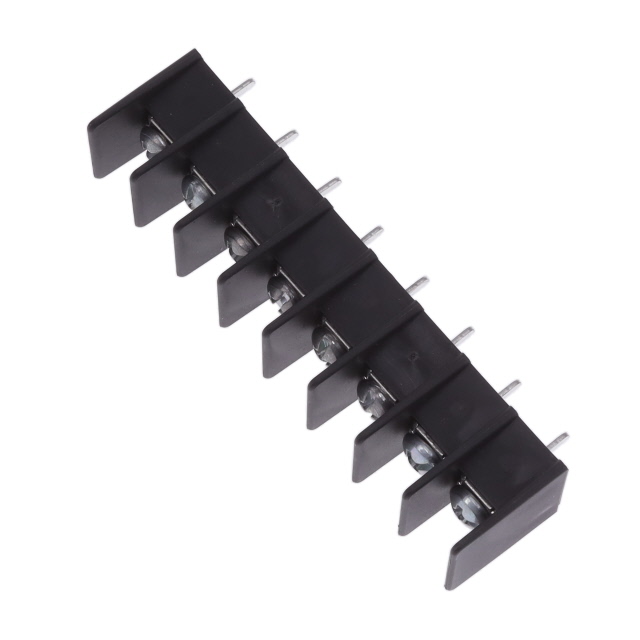

CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325310-09-0
ActiveCurtis Industries
CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325310-09-0 | 325310 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | - | 3 - 23 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 9 | 3 - 15 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.60 | |
| 10 | $ 2.75 | |||
| 30 | $ 2.57 | |||
| 50 | $ 2.29 | |||
| 100 | $ 2.24 | |||
| 250 | $ 2.19 | |||
325310 Series
CONN BARRIER STRIP 3CIRC 0.325"
| Part | Top Termination | Material Flammability Rating | Terminal Block Type | Mounting Type | Terminal Screw Material | Voltage Rating | Number of Wire Entries | Operating Temperature | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Current Rating (Amps) | Number of Circuits | Number of Rows | Bottom Termination | Material - Insulation | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325310-03-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 3 | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 3 | 1 | PC Pin | Polypropylene (PP) | |
Curtis Industries 325310-15-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 15 | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 15 | 1 | PC Pin | Polypropylene (PP) | |
Curtis Industries 325310-23-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 23 | 1 | PC Pin | Polypropylene (PP) | 23 | |
Curtis Industries 325310-11-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 11 | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 11 | 1 | PC Pin | Polypropylene (PP) | |
Curtis Industries 325310-09-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 9 | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 1 | PC Pin | Polypropylene (PP) | ||
Curtis Industries 325310-14-0 | Screws | UL94 V-0 | Barrier Block | Through Hole | Steel | 300 VDC | 14 | 105 C | 8.26 mm | 0.325 in | 14 AWG | 22 AWG | 3 Wall (Tri) | 15 A | 14 | 1 | PC Pin | Polypropylene (PP) |
Description
General part information
325310 Series
9 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
