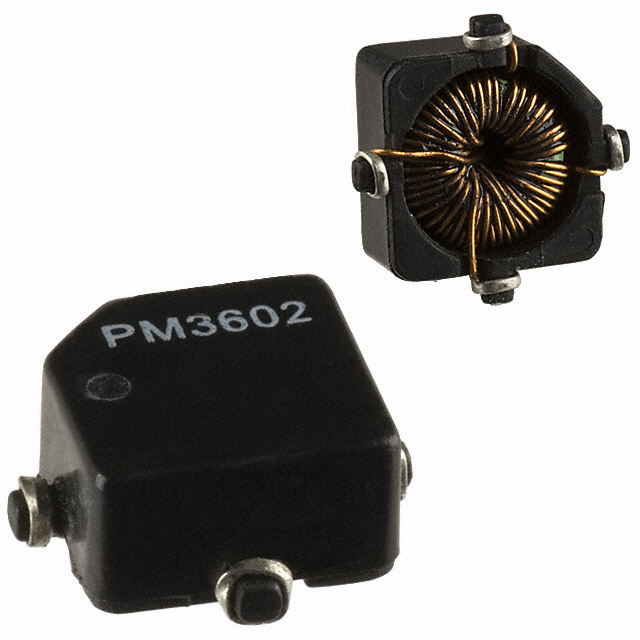

PM3602-200-RC

Active

Bourns Inc.

INDUCT ARRAY 2 COIL 200UH SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM3602-200-RC

Active

Bourns Inc.

INDUCT ARRAY 2 COIL 200UH SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM3602-200-RC

Current Rating - Parallel	400 mA
Current Rating - Series [custom]	200 mA
DC Resistance (DCR) - Parallel [Max]	840 mOhm
Height [z]	5.72 mm
Height [z]	0.225 in
Inductance - Connected In Parallel	200 µH
Inductance - Connected In Series	800 µH
Mounting Type	Surface Mount
Number of Coils	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	11.48 mm
Size / Dimension [x]	0.452 in
Size / Dimension [y]	8.99 mm
Size / Dimension [y]	0.354 in
Tolerance	20 %

PM3602 Series

Part	Mounting Type	Shielding	Current Rating - Parallel	DC Resistance (DCR) - Series	Inductance - Connected In Parallel	Package / Case	DC Resistance (DCR) - Parallel	Operating Temperature [Min]	Operating Temperature [Max]	Inductance - Connected In Series	Number of Coils	Current Rating - Series [custom]	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Current Rating - Series [custom]	DC Resistance (DCR) - Series [Max]	DC Resistance (DCR) - Parallel [Max]
Bourns Inc. PM3602-250-B-RC	Surface Mount	Unshielded	330 mA	4.76 Ohm	250 µH	Nonstandard	1.19 Ohm	-55 °C	125 °C	1 mH	2	170 mA	5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %
Bourns Inc. PM3602-15-B-RC	Surface Mount	Unshielded	1.45 A	250 mOhm	15 µH	Nonstandard	63 mOhm	-55 °C	125 °C	60 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	730 mA
Bourns Inc. PM3602-68-B-RC	Surface Mount	Unshielded	720 mA	1.04 Ohm	68 µH	Nonstandard	260 mOhm	-55 °C	125 °C	272 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	360 mA
Bourns Inc. PM3602-100-B-RC	Surface Mount	Unshielded	580 mA		100 µH	Nonstandard	400 mOhm	-55 °C	125 °C	400 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	290 mA	1.6 Ohm
Bourns Inc. PM3602-68-RC	Surface Mount	Unshielded	720 mA	1.04 Ohm	68 µH	Nonstandard	260 mOhm	-55 °C	125 °C	272 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	360 mA
Bourns Inc. PM3602-300-RC	Surface Mount	Unshielded	320 mA		300 µH	Nonstandard	1.31 Ohm	-55 °C	125 °C	1.2 mH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %		5.24 Ohm
Bourns Inc. PM3602-200-B-RC	Surface Mount	Unshielded	400 mA		200 µH	Nonstandard		-55 °C	125 °C	800 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	200 mA		840 mOhm
Bourns Inc. PM3602-250-RC	Surface Mount	Unshielded	330 mA	4.76 Ohm	250 µH	Nonstandard	1.19 Ohm	-55 °C	125 °C	1 mH	2	170 mA	5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %
Bourns Inc. PM3602-25-B	Surface Mount	Unshielded	1.17 A	390 mOhm	25 µH	Nonstandard		-55 °C	125 °C	100 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	590 mA		96 mOhm
Bourns Inc. PM3602-200-RC	Surface Mount	Unshielded	400 mA		200 µH	Nonstandard		-55 °C	125 °C	800 µH	2		5.72 mm	0.225 in	8.99 mm	0.354 in	11.48 mm	0.452 in	20 %	200 mA		840 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.85
		10	$ 1.57
		25	$ 1.45
		50	$ 1.30
		100	$ 1.08
	Digi-Reel®	1	$ 1.85
		10	$ 1.57
		25	$ 1.45
		50	$ 1.30
		100	$ 1.08
	Tape & Reel (TR)	400	$ 0.95
		800	$ 0.88
		1200	$ 0.84
		2000	$ 0.79
		2800	$ 0.76

Description

General part information

PM3602 Series

Unshielded 2 Coil Inductor Array 800 µH Inductance - Connected in Series 200 µH Inductance - Connected in Parallel 840mOhm Max DC Resistance (DCR) - Parallel 400 mA Nonstandard
