HEG.0K.302.CLLP

Active

LEMO

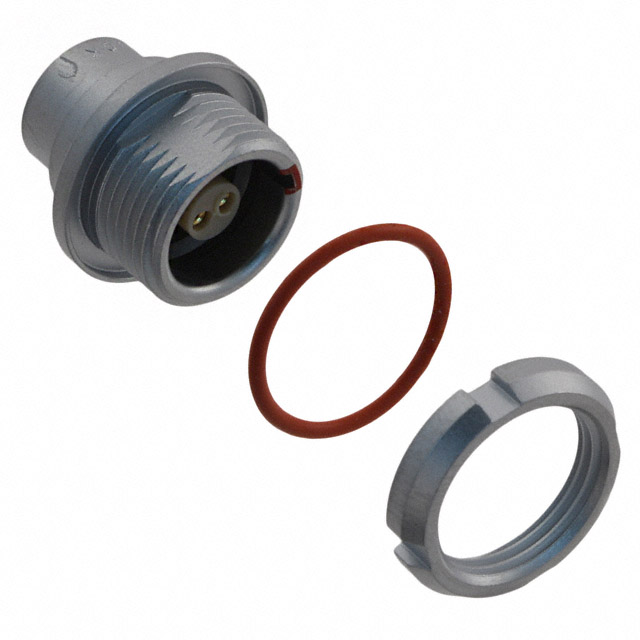

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsK&E Series Catalog Datasheet

HEG.0K.302.CLLP

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsK&E Series Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.94
		10	$ 43.08
		25	$ 41.42
		50	$ 40.04
		100	$ 37.83
		250	$ 36.73

Description

General part information

HEG.0K Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

K&E Series Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEG.0K.302.CLLP	HEG.0K Series

Applications	Military, Aviation	Military, Aviation
Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	10 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	2	2 - 9
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 309
Shielding	Shielded	Shielded
Termination	-	Solder

HEG.0K Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Connector Type	Primary Material	Number of Positions	Shell Size - Insert	Current Rating (Amps)	Mounting Feature	Contact Material	Applications	Shielding	Color	Shell Material	Orientation	Ingress Protection	Features	Insert Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Mounting Type
LEMO HEG.0K.302.CLLP	Receptacle, Female Sockets	Metal	2	302	10 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold
LEMO HEG.0K.302.CLNP	Receptacle, Female Sockets	Metal	2	302	10 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold	Solder	Panel Mount, Through Hole
LEMO HEG.0K.303.CLVP	Receptacle, Female Sockets	Metal		303	8 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold	Solder	Panel Mount, Right Angle, Through Hole
LEMO HEG.0K.302.CLVP	Receptacle, Female Sockets	Metal	2	302	6 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold	Solder	Panel Mount, Right Angle, Through Hole
LEMO HEG.0K.306.CLVP	Receptacle, Female Sockets	Metal	6	306	2.5 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold	Solder	Panel Mount, Right Angle, Through Hole
LEMO HEG.0K.309.CLLP	Receptacle, Female Sockets	Metal	9	309	2 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold
LEMO HEG.0K.309.KLLP	Receptacle, Female Sockets	Metal	9	309	2 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Black	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull		59 Áin	1.5 Ám	Gold
LEMO HEG.0K.309.CLNP	Receptacle, Female Sockets	Metal	9	309	2 A	Bulkhead - Front Side Nut	Bronze	Aviation, Military	Shielded	Silver	Brass	G	IP68 - Dust Tight, Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	100 °C	-20 C	Push-Pull	Chrome	59 Áin	1.5 Ám	Gold	Solder	Panel Mount, Through Hole
