1899C SL002

Active

ALPHA WIRE

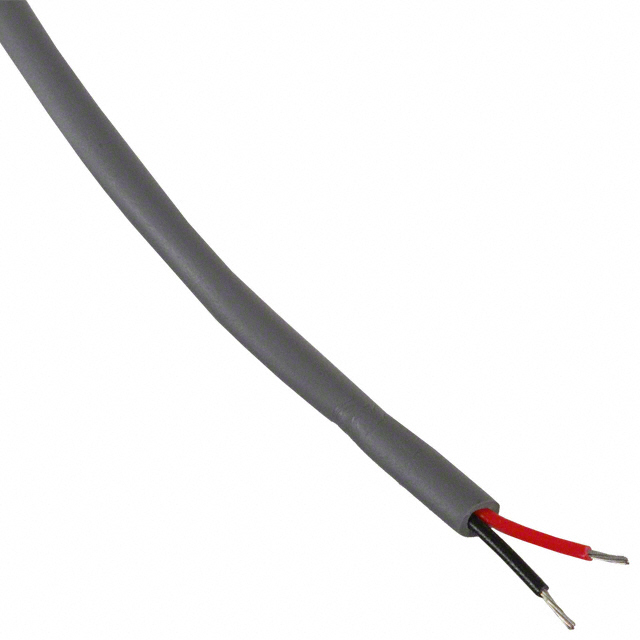

CABLE 2COND 16AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG SLATE 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1899C SL002	1899C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	5.64 mm	5.64 mm
Jacket (Insulation) Diameter [diameter]	0.222 in	0.222 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	100 - 500 '
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2COND 16AWG SLATE 500'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket Color	Voltage	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Cable Type	Length	Length
ALPHA WIRE 1899C SL002	5.64 mm	0.222 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	2	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	19	0.0117 in	Copper, Tinned	Slate	300 V	Communication, Control	0.02 in	0.508 mm	16 AWG	Multi-Conductor
ALPHA WIRE 1899C SL001	5.64 mm	0.222 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	2	Poly-Vinyl Chloride (PVC)			19	0.0117 in	Copper, Tinned	Slate	300 V	Communication, Control	0.02 in	0.508 mm	16 AWG	Multi-Conductor	1000 ft	304.8 m
ALPHA WIRE 1899C SL005	5.64 mm	0.222 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	2	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	19	0.0117 in	Copper, Tinned	Slate	300 V	Communication, Control	0.02 in	0.508 mm	16 AWG	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
