Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Z0402MH | Z0402MH Series |
|---|---|---|
| - | - | |
| Configuration | Single | Single |
| Current - Gate Trigger (Igt) (Max) [Max] | 3 mA | 3 mA |
| Current - Hold (Ih) (Max) [Max] | 5 mA | 5 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 16 A | 16 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 15 A | 15 A |
| Current - On State (It (RMS)) (Max) [Max] | 4 A | 4 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | IPAK, TO-251-3 Short Leads, TO-251AA | IPAK, TO-251-3 Short Leads, TO-251AA |
| Supplier Device Package | IPAK | IPAK |
| Triac Type | Standard | Standard |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
| Voltage - Off State | 600 V | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Z0402MH Series

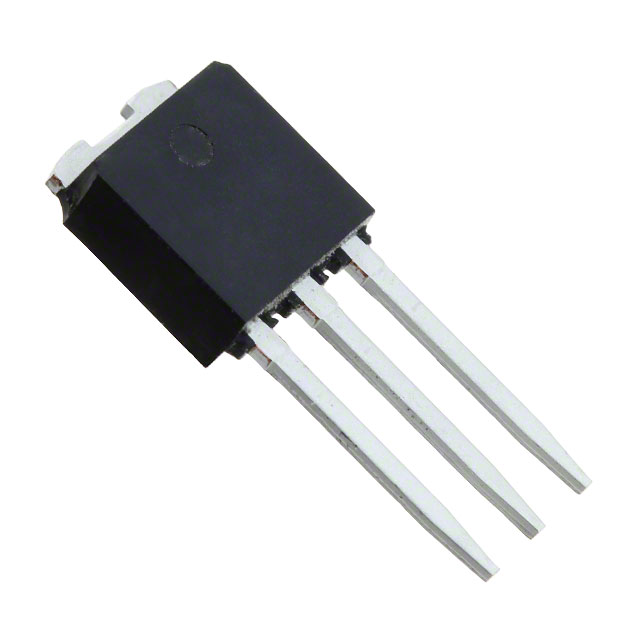

4 A Triac in IPAK
| Part | Voltage - Off State | Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | Package / Case | Current - On State (It (RMS)) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Triac Type | Voltage - Gate Trigger (Vgt) (Max) [Max] | Configuration | Current - Hold (Ih) (Max) [Max] | Mounting Type | Current - Gate Trigger (Igt) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics Z0402MH | ||||||||||||||
STMicroelectronics Z0402MH | 600 V | 16 A | 15 A | IPAK, TO-251-3 Short Leads, TO-251AA | 4 A | -40 °C | 125 ¯C | IPAK | Standard | 1.3 V | Single | 5 mA | Through Hole | 3 mA |
STMicroelectronics Z0402MH |
Description
General part information
Z0402MH Series
The Z0402MH series is 4 A Triac housed in compact through-hole IPAK package. This 4 quadrants device is suited to home appliances or power tools and industrial systems and drives loads up to 4 A.
