Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1310100120-000 | T131 Series |
|---|---|---|
| Connector Type | Hood | Hood, Hood - 90° |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast, Polycarbonate (PC), Zinc Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H10B | H16A, H10A, H24B, H48B, H3A, H32B, H16B, H10B, H32A, H6B |
| Size / Dimension [x] | 73 mm | 26.8 - 132 mm |
| Size / Dimension [x] | 2.874 in | 1.055 - 5.197 in |
| Size / Dimension [y] | 43 mm | 26.8 - 88 mm |
| Size / Dimension [y] | 1.693 in | 1.055 - 3.465 in |
| Size / Dimension [z] | 60 mm | 48.4 - 106.5 mm |
| Size / Dimension [z] | 2.362 " | 1.906 - 4.193 " |
| Style | Side Entry | Side Entry, Side Entry, Dual |
| Thread Size | M20 | PG21, M20, M25, M50, M16, PG11, M32, PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.68 | |
| 10 | $ 4.10 | |||
| 25 | $ 3.99 | |||
| 50 | $ 3.90 | |||
| 100 | $ 3.78 | |||
T131 Series
H16A-TS-PG21
| Part | Style | Ingress Protection | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Housing Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size | Housing Material | Connector Type | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1319160121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 29.7 mm | 3.118 in | 2.291 " | 58.2 mm | 1.169 in | 79.2 mm | H16A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319100120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M20 | Gray | 29.7 mm | 2.488 " | 2.291 " | 58.2 mm | 1.169 in | 63.2 mm | H10A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310240125-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M25 | Gray | 43 mm | 4.724 " | 2.362 " | 60 mm | 1.693 in | 120 mm | H24B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310480150-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M50 | Gray | 88 mm | 5.197 in | 4.193 " | 106.5 mm | 3.465 in | 132 mm | H48B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319031120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | 125 °C | -40 °C | M20 | 26.8 mm | 1.055 " | 1.907 in | 48.45 mm | 1.055 " | 26.8 mm | H3A | Polycarbonate (PC) | Hood - 90° | Locking Clip (1) on Base Bottom | ||
TE Connectivity AMP Connectors T1310320121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 82.5 mm | 3.701 " | 2.992 in | 76 mm | 3.248 in | 94 mm | H32B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310160120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M20 | Gray | 43 mm | 3.681 " | 2.362 " | 60 mm | 1.693 in | 93.5 mm | H16B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310100016-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | M16 | Gray | 43 mm | 2.874 in | 2.362 " | 60 mm | 1.693 in | 73 mm | H10B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom | ||
TE Connectivity AMP Connectors T1319100121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 29.7 mm | 2.488 " | 2.291 " | 58.2 mm | 1.169 in | 63.2 mm | H10A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319160120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M20 | Gray | 29.7 mm | 3.118 in | 2.291 " | 58.2 mm | 1.169 in | 79.2 mm | H16A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310100121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 43 mm | 2.874 in | 2.362 " | 60 mm | 1.693 in | 73 mm | H10B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319030111-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG11 | Gray | 26.8 mm | 1.055 " | 1.906 in | 48.4 mm | 1.055 " | 26.8 mm | H3A | Zinc Alloy, Die Cast | Hood - 90° | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310480140-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | Gray | 88 mm | 5.197 in | 4.193 " | 106.5 mm | 3.465 in | 132 mm | H48B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom | |
TE Connectivity AMP Connectors T1310320132-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M32 | Gray | 82.5 mm | 3.701 " | 2.992 in | 76 mm | 3.248 in | 94 mm | H32B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319320120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M20 | Gray | 56 mm | 3.228 in | 2.992 in | 76 mm | 2.205 in | 82 mm | H32A | Aluminum Alloy, Die Cast | Hood | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors T1310100120-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M20 | Gray | 43 mm | 2.874 in | 2.362 " | 60 mm | 1.693 in | 73 mm | H10B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319320132-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M32 | Gray | 56 mm | 3.228 in | 2.992 in | 76 mm | 2.205 in | 82 mm | H32A | Aluminum Alloy, Die Cast | Hood | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors T1319320129-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG29 | Gray | 56 mm | 3.228 in | 2.992 in | 76 mm | 2.205 in | 82 mm | H32A | Aluminum Alloy, Die Cast | Hood | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors T1310060121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 43 mm | 2.362 in | 2.362 " | 60 mm | 1.693 in | 60 mm | H6B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319100125-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M25 | Gray | 29.7 mm | 2.488 " | 2.291 " | 58.2 mm | 1.169 in | 63.2 mm | H10A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310320140-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | Gray | 82.5 mm | 3.701 " | 2.992 in | 76 mm | 3.248 in | 94 mm | H32B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom | |
TE Connectivity AMP Connectors T1310240121-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG21 | Gray | 43 mm | 4.724 " | 2.362 " | 60 mm | 1.693 in | 120 mm | H24B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310320150-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M50 | Gray | 82.5 mm | 3.701 " | 2.992 in | 76 mm | 3.248 in | 94 mm | H32B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310320129-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG29 | Gray | 82.5 mm | 3.701 " | 2.992 in | 76 mm | 3.248 in | 94 mm | H32B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1310160225-000 | Side Entry, Dual | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | M25 | Gray | 43 mm | 3.681 " | 2.362 " | 60 mm | 1.693 in | 93.5 mm | H16B | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1319160111-000 | Side Entry | IP65 - Dust Tight, Water Resistant | Powder Coated | 125 °C | -40 °C | PG11 | Gray | 29.7 mm | 3.118 in | 2.291 " | 58.2 mm | 1.169 in | 79.2 mm | H16A | Aluminum Alloy, Die Cast | Hood | Locking Clip (1) on Base Bottom |
Description
General part information
T131 Series

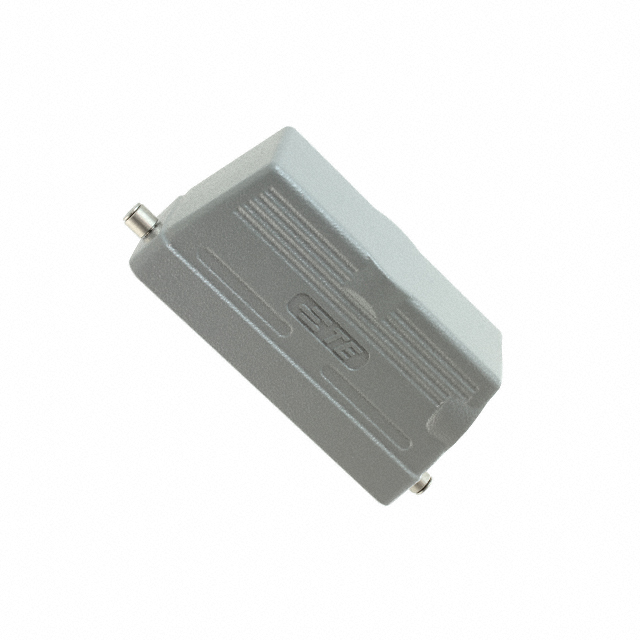

Hood Connector Side Entry M20 H10B IP65 - Dust Tight, Water Resistant
