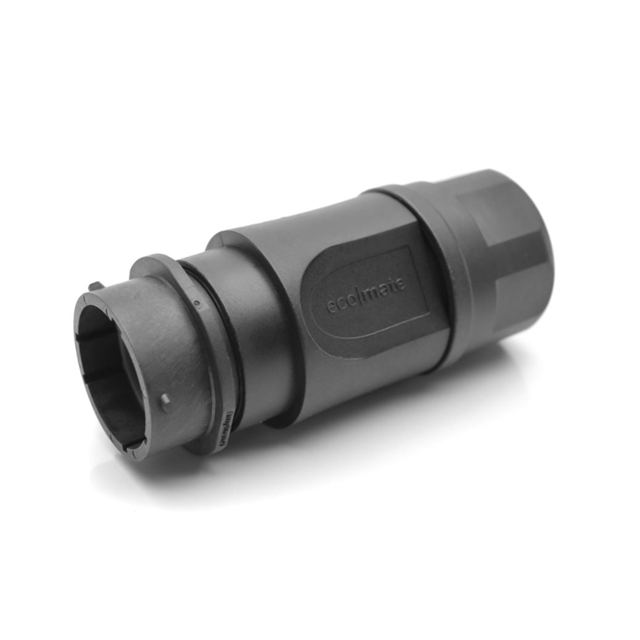

RTS1BS18N32P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 32POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

RTS1BS18N32P03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 32POS INLINE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Eco|mate® Aquarius™ Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS1BS18N32P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Includes	6 pcs - 1 Connector, 1 Backshell, 1 Clamp Ring, 1 Nut, 1 O-Ring, 1 Seal
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Type	For Male Pins

RTS1BS18 Series

Part	Number of Positions	Shell Size - Insert	Contact Type	Connector Type	Insert Material	Housing Color	Contact Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Note	Features	Includes	Shielding	Mounting Type	Orientation	Contact Shape	Fastening Type	Material Flammability Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
Amphenol Sine Systems Corp RTS1BS18N8S03	8	18-8	Crimp	Receptacle Housing	Thermoplastic	Black	2.5 mm	IP67 IP69K	125 °C	-40 °C	For Female Sockets	Contacts Not Included	Backshell	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Unshielded	Free Hanging (In-Line)	N	Circular	Bayonet Lock	UL94 V-0
Amphenol Sine Systems Corp RTS1BS18N32S03			Crimp	Receptacle Housing	Thermoplastic	Black	20	IP67 IP69K	125 °C	-40 °C	For Female Sockets	Contacts Not Included	Backshell	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Unshielded	Free Hanging (In-Line)	N	Circular	Bayonet Lock	UL94 V-0	32	18
Amphenol Sine Systems Corp RTS1BS18N23S03	23		Crimp	Receptacle Housing	Thermoplastic	Black	16	IP67 IP69K	125 °C	-40 °C	For Female Sockets	Contacts Not Included	Backshell	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Unshielded	Free Hanging (In-Line)	N	Circular	Bayonet Lock	UL94 V-0			18	23
Amphenol Sine Systems Corp RTS1BS18N32P03			Crimp	Receptacle Housing	Thermoplastic	Black	20	IP67 IP69K	125 °C	-40 °C	For Male Pins	Contacts Not Included	Backshell	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	Unshielded	Free Hanging (In-Line)	N	Circular	Bayonet Lock	UL94 V-0	32	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.53
		10	$ 9.99
		25	$ 9.66

Description

General part information

RTS1BS18 Series

32 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

Eco|mate® Aquarius™ Flyer

Datasheet
