1.30.070.001/1505

Active

RAFI USA

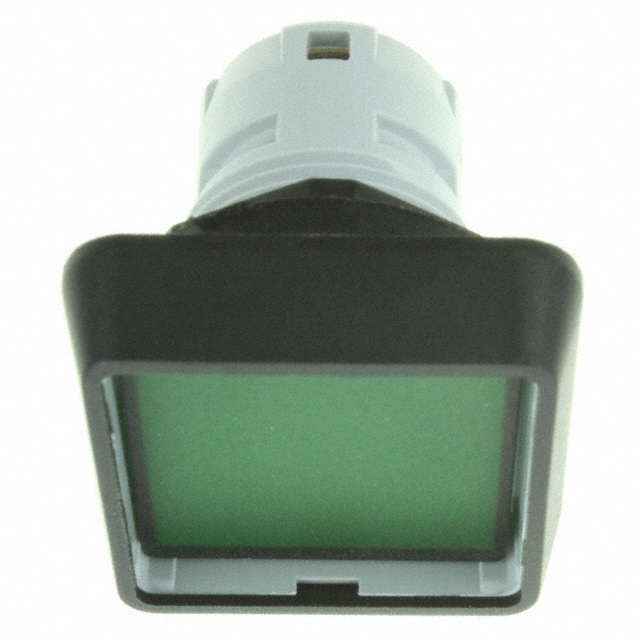

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

RAFI USA

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.070.001/1505

(Select First, Then Apply Filters) Compatible Series	Rafix 16
Actuator Type	Pushbutton, Square
Illumination	Illuminated - Green
Panel Cutout Dimensions	16.2 mm
Requires	Illumination Source, Contact Block(s)

Part	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Requires	Illumination	Panel Cutout Dimensions
RAFI USA 1.30.070.001/1505	Pushbutton Square	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Green	16.2 mm
RAFI USA 1.30.070.271/0300	Pushbutton Round	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.251/0400	Pushbutton Square	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.251/0100	Pushbutton Square	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.071/1306	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source		16.2 mm
RAFI USA 1.30.070.221/1002
RAFI USA 1.30.070.026/1306	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source		16.2 mm
RAFI USA 1.30.070.051/1002	Pushbutton Square	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Clear	16.2 mm
RAFI USA 1.30.070.071/1002	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Clear	16.2 mm
RAFI USA 1.30.070.271/0200	Pushbutton Round	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.76

General part information

Configurable Switch Body Pushbutton, Square Illuminated - Green
