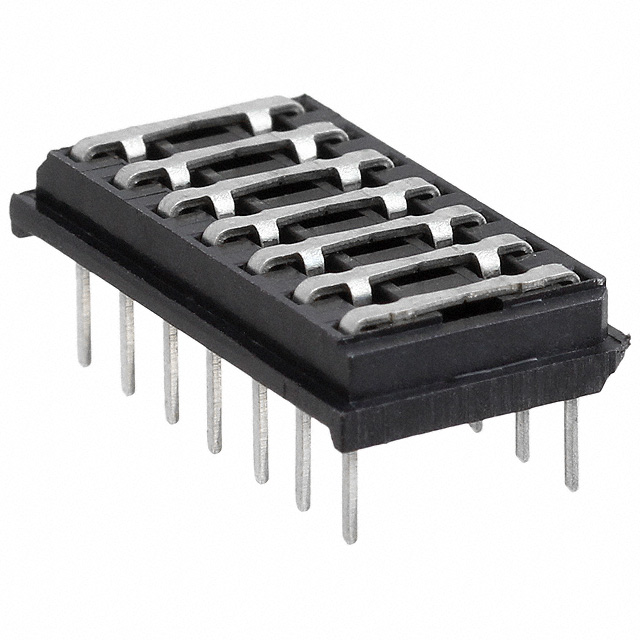

14-680-191T
ActiveAries Electronics
CONN HDR MALE PIN 14POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14-680-191T
ActiveAries Electronics
CONN HDR MALE PIN 14POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 14-680-191T |
|---|---|
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Features | Programmable |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.3 in |
| Row Spacing | 7.62 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.20 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.86 | |||
| 5000 | $ 0.77 | |||
| 10000 | $ 0.74 | |||
Description
General part information
14-680 Series
14 Position Header Connector Tin
