General part information

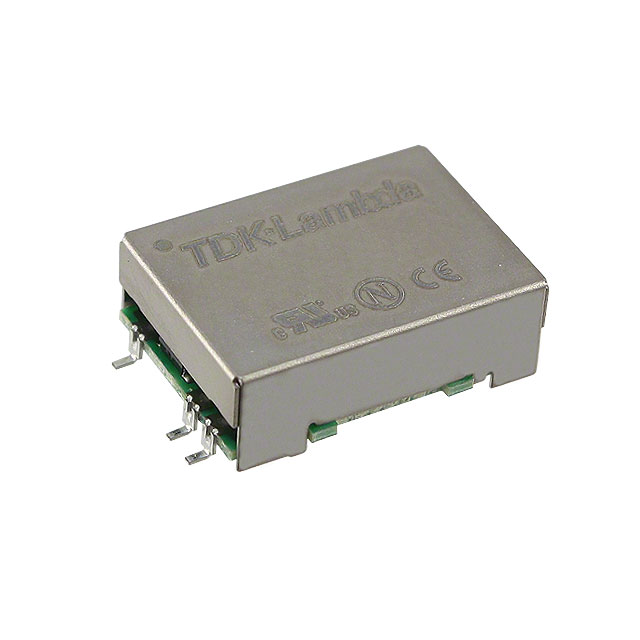

Isolated Module DC DC Converter 1 Output 12 ~ 15V 250mA 36V - 76V Input
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | CC3-4812SR-E | CC3-4812 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable |
| Current - Output (Max) | - | 125 mA |
| Current - Output (Max) | - | 125 mA |
| Current - Output (Max) [Max] | 250 mA | 250 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SMD Module | 7-SMD Module |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 0.9 " | 0.9 " |
| Size / Dimension [x] | 22.9 mm | 22.9 mm |
| Size / Dimension [y] | 16.6 mm | 16.6 mm |
| Size / Dimension [y] | 0.65 in | 0.65 in |
| Size / Dimension [z] | 8.8 mm | 8.8 mm |
| Size / Dimension [z] | 0.35 " | 0.35 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V | 76 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 500 V | 500 V |
| Voltage - Output 1 [Max] | 15 V | 15 V |
| Voltage - Output 1 [Min] | 12 V | 12 V |
| Voltage - Output 2 | - | -15 V |
| Voltage - Output 2 | - | -12 V |
DC DC CNVRTR +/-12V TO +/-15V 3W
| Part | Applications | Voltage - Output 2 [Min] | Voltage - Output 2 [Max] | Control Features | Voltage - Input (Min) [Min] | Mounting Type | Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Power (Watts) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA CC3-4812DR-E | ITE (Commercial) | -15 V | -12 V | Active Low, Enable | 36 V | Surface Mount | Isolated Module | 500 V | 76 V | 15 V | 12 V | 125 mA | 125 mA | 85 °C | -40 °C | 2 | 16.6 mm | 0.9 " | 22.9 mm | 8.8 mm | 0.65 in | 0.35 " | 7-SMD Module | 3 W | |
TDK-LAMBDA CC3-4812SR-E | ITE (Commercial) | Active Low, Enable | 36 V | Surface Mount | Isolated Module | 500 V | 76 V | 15 V | 12 V | 85 °C | -40 °C | 1 | 16.6 mm | 0.9 " | 22.9 mm | 8.8 mm | 0.65 in | 0.35 " | 7-SMD Module | 3 W | 250 mA |
