General part information

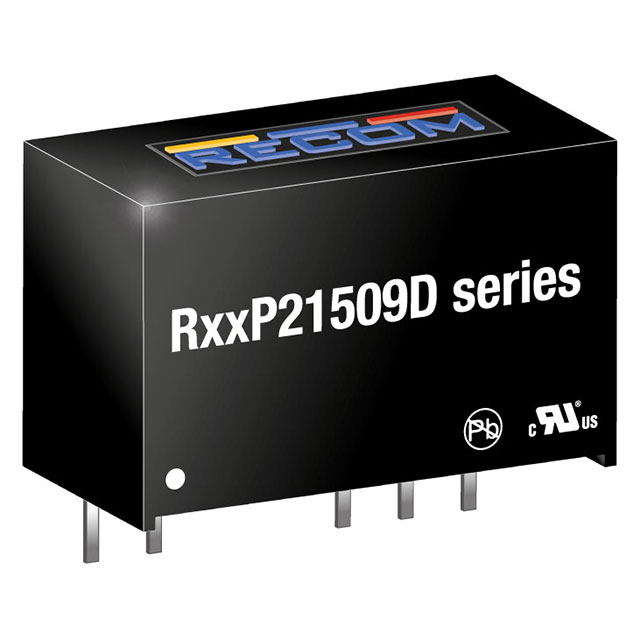

Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | R12P21509D/P | RxxP21509D Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) | 66 mA, 111 mA | 66 - 111 mA |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Power (Watts) | 2 W | 2 W |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V | 5.5 - 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V | 4.5 - 10.8 V |
| Voltage - Isolation | 6.4 kV | 6.4 kV |
| Voltage - Output 1 | 15 V | 15 V |
| Voltage - Output 2 | -9 V | -9 V |
Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC
| Part | Voltage - Isolation | Power (Watts) | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Output 2 | Voltage - Input (Min) [Min] | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 | Current - Output (Max) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power R05P21509D | 6.4 kV | 2 W | 2 | 5.5 V | -9 V | 4.5 V | ITE (Commercial), Medical | Isolated Module | 85 °C | -40 °C | Through Hole | 15 V | 66 mA, 111 mA | |
RECOM Power R12P21509D/P | 6.4 kV | 2 W | 2 | 13.2 V | -9 V | 10.8 V | ITE (Commercial), Medical | Isolated Module | 85 °C | -40 °C | Through Hole | 15 V | 66 mA, 111 mA | SCP |
