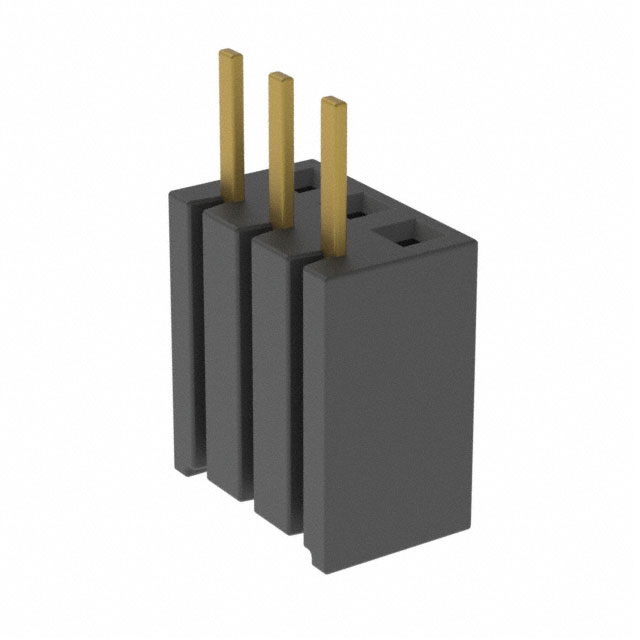

BSW-103-04-G-S

Active

Samtec Inc.

CONN RCPT 3POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Bottom Entry Socket Strip BSW Datasheet +1

BSW-103-04-G-S

Active

Samtec Inc.

CONN RCPT 3POS 0.1 GOLD PCB

Deep-Dive with AI

Documents.100" Bottom Entry Socket Strip BSW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-103-04-G-S

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-103 Series

Part	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Contact Finish - Post	Contact Shape	Fastening Type	Number of Rows	Termination	Contact Finish - Mating	Material Flammability Rating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-103-04-L-M	Breakaway Receptacle	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Female Socket	Tin	Square	Push-Pull	1	Solder	Gold	UL94 V-0	Bottom Mount Through Hole	3.18 mm	0.125 in	-55 °C	125 °C	Phosphor Bronze	All	Black	10 çin	0.25 çm	0.35 in	8.89 mm
Samtec Inc. BSW-103-04-G-D	Breakaway Receptacle	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Female Socket	Tin	Square	Push-Pull	2	Solder	Gold	UL94 V-0	Bottom Mount Through Hole	4.19 mm	0.165 in	-55 °C	125 °C	Phosphor Bronze	All	Black	20 µin	0.51 µm	0.35 in	8.89 mm	2.54 mm	0.1 in	6
Samtec Inc. BSW-103-04-T-D	Breakaway Receptacle	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Female Socket	Tin	Square	Push-Pull	2	Solder		UL94 V-0	Bottom Mount Through Hole	4.19 mm	0.165 in	-55 °C	105 ░C	Phosphor Bronze	All	Black			0.35 in	8.89 mm	2.54 mm	0.1 in	6
Samtec Inc. BSW-103-04-L-D	Breakaway Receptacle	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Female Socket	Tin	Square	Push-Pull	2	Solder	Gold	UL94 V-0	Bottom Mount Through Hole	4.19 mm	0.165 in	-55 °C	125 °C	Phosphor Bronze	All	Black	10 çin	0.25 çm	0.35 in	8.89 mm	2.54 mm	0.1 in	6
Samtec Inc. BSW-103-04-G-S	Breakaway Receptacle	0.1 in	2.54 mm	Polyethylene Terephthalate (PET) Glass Filled	Female Socket	Tin	Square	Push-Pull	1	Solder	Gold	UL94 V-0	Bottom Mount Through Hole			-55 °C	125 °C	Phosphor Bronze	All	Black	20 µin	0.51 µm	0.35 in	8.89 mm				4.32 mm	0.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.21
		10	$ 1.69
		100	$ 1.30
		500	$ 1.09
		1000	$ 1.02
		5000	$ 0.87
		10000	$ 0.82

Description

General part information

BSW-103 Series

3 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
