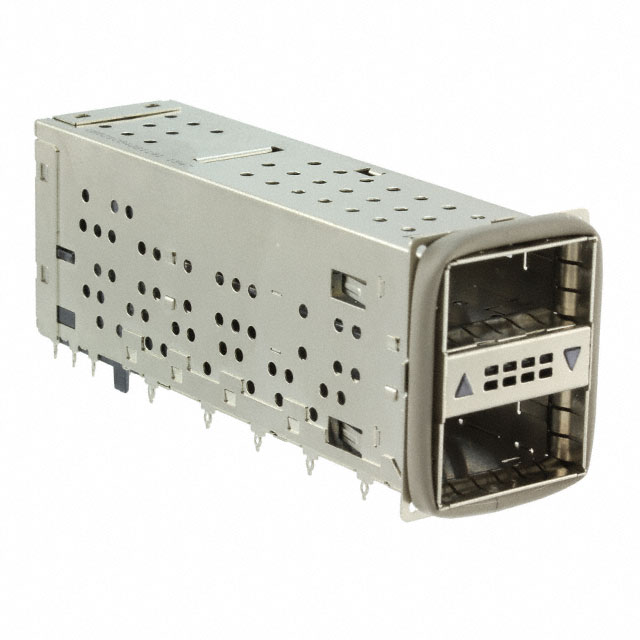

Specification	U95-Z105-4081-141

Connector Pin Configuration (Columns)	1 pins
Connector Pin Configuration (Rows)	2 pins
Connector Style	Receptacle with Cage, Ganged
Connector Type	QSFP+
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Light Pipe, EMI Shielded
Mounting Type	Through Hole, Right Angle
Number of Positions (Columns)	38
Number of Positions (Rows)	2
Number of Positions (Total)	76
Termination	Press-Fit

U95 Series

Part	Connector Type	Contact Finish Thickness	Mounting Type	Connector Pin Configuration (Rows)	Connector Pin Configuration (Columns)	Connector Style	Number of Positions (Rows)	Number of Positions (Total)	Number of Positions (Columns)	Contact Finish	Features	Termination
Amphenol ICC (Commercial Products) U95-Z305-4081-341	QSFP+	30 µin	Right Angle Through Hole	2 pins	3 pins	Ganged Receptacle with Cage	6	228	38	Gold	EMI Shielded Light Pipe	Press-Fit
Amphenol ICC (Commercial Products) U95-Z205-4071-141	QSFP+	30 µin	Right Angle Through Hole	2 pins	2 pins	Ganged Receptacle with Cage	4	152	38	Gold	EMI Shielded	Press-Fit
Amphenol ICC (Commercial Products) U95-Z105-4081-341	QSFP+	30 µin	Right Angle Through Hole	2 pins	1 pins	Ganged Receptacle with Cage	2	76	38	Gold	EMI Shielded Light Pipe	Press-Fit
Amphenol ICC (Commercial Products) U95-Z205-4081-141	QSFP+	30 µin	Right Angle Through Hole	2 pins	2 pins	Ganged Receptacle with Cage	4	152	38	Gold	EMI Shielded Light Pipe	Press-Fit
Amphenol ICC (Commercial Products) U95-T111-1001	QSFP+		Right Angle Through Hole			Cage						Press-Fit
Amphenol ICC (Commercial Products) U95-Z105-4081-141	QSFP+	30 µin	Right Angle Through Hole	2 pins	1 pins	Ganged Receptacle with Cage	2	76	38	Gold	EMI Shielded Light Pipe	Press-Fit
Amphenol ICC (Commercial Products) U95-T151-107A	QSFP+		Right Angle Through Hole			Cage with Heat Sink					Light Pipe	Press-Fit
Amphenol ICC (Commercial Products) U95-Z205-4081-341	QSFP+	30 µin	Right Angle Through Hole	2 pins	2 pins	Ganged Receptacle with Cage	4	152	38	Gold	EMI Shielded Light Pipe	Press-Fit
