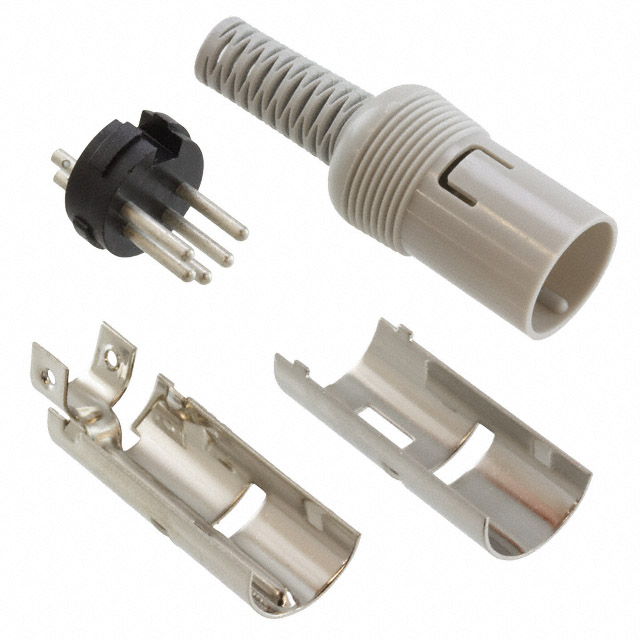

05GM5MX

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	05GM5MX

Backshell Material, Plating	Plastic
Color	Gray, Silver
Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Orientation	5
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	34 V

CONN PLUG MALE DIN 5POS SOLDER

Part	Shell Size - Insert	Color	Shell Finish	Mounting Type	Current Rating (Amps)	Shielding	Fastening Type	Shell Material	Insert Material	Connector Type	Backshell Material, Plating	Voltage Rating	Primary Material	Orientation	Features	Termination
Switchcraft Inc. 05GM5MX	DIN	Gray, Silver	Nickel	Free Hanging (In-Line)	3 A	Shielded	Push-Pull	Zinc Die Cast	Plastic	Male Pins, Plug	Plastic	34 V	Metal	5	Backshell, Cable Clamp, Strain Relief	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder
