H67AAPC,BK

Active

Serpac

BOX ABS BLACK 4.94"L X 2.75"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.94"L X 2.75"W

Technical Specifications

Parameters and characteristics for this part

Specification	H67AAPC,BK

Area (L x W)	88 cm²
Area (L x W)	13.6 in˛
Color	Black
Container Type	Box
Features	AA, Battery Compartment, Pocket Clip, PCB Supports
Height [z]	1.28 in
Height [z]	32.51 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	62.14 g
Weight	0.137 lb

Part	Container Type	Color	Ratings	Weight	Weight	Thickness	Thickness	Area (L x W)	Area (L x W)	Features	Material	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating
Serpac H67AAPC,GY	Box	Gray	IP40	62.14 g	0.137 lb	2.03 mm	0.08 "	13.6 in˛	88 cm²	AA Battery Compartment PCB Supports Pocket Clip	Plastic ABS	1.28 in	32.51 mm	69.85 mm	4.94 " 125.48 mm	UL94 HB
Serpac H67AAPC,BK	Box	Black	IP40	62.14 g	0.137 lb	2.03 mm	0.08 "	13.6 in˛	88 cm²	AA Battery Compartment PCB Supports Pocket Clip	Plastic ABS	1.28 in	32.51 mm	69.85 mm	4.94 " 125.48 mm	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

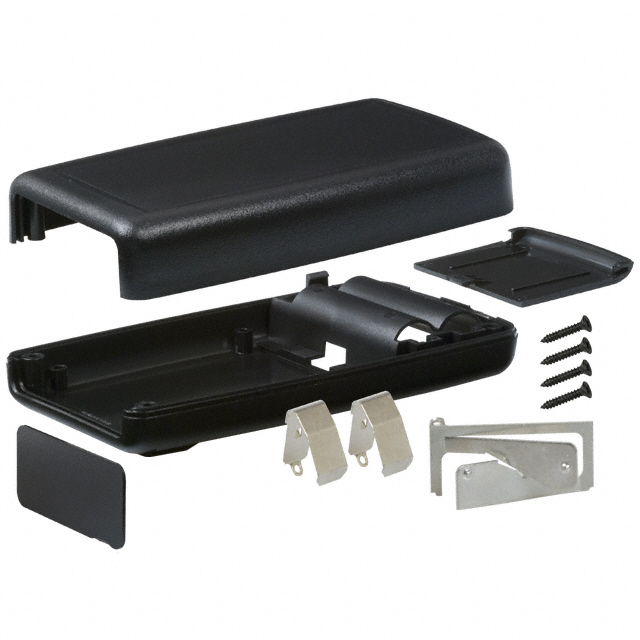

Box Plastic, ABS Black Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 1.280" (32.51mm)

Technical documentation and resources

No documents available
