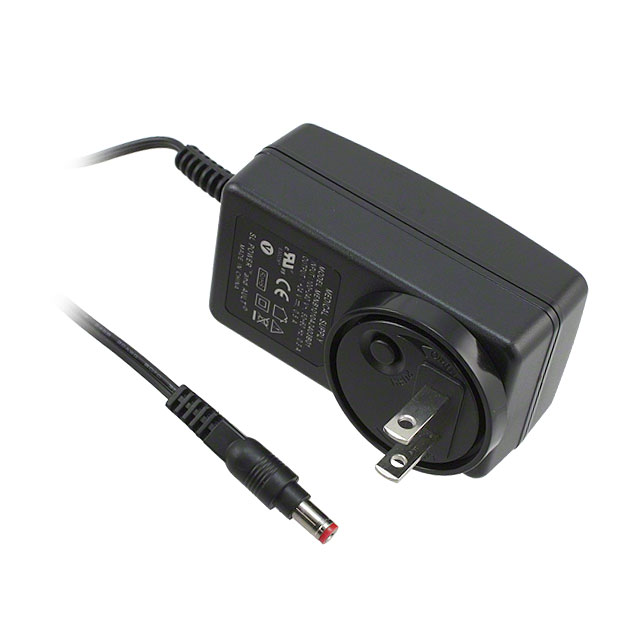

MENB1010A0503B01
ObsoleteSL POWER / Advanced Energy
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MENB1010A0503B01
ObsoleteSL POWER / Advanced Energy
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MENB1010A0503B01 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CSA, UL, CE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P, Multi-Blade |
| Input Type | Multi-Blade, Fixed Blade |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 10 W |
| Region Utilized | North America |
| Size / Dimension [x] | 84 mm |
| Size / Dimension [x] | 3.3 " |
| Size / Dimension [y] | 47 mm |
| Size / Dimension [y] | 1.85 " |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 5 V |
| Weight | 0.243 lb |
| Weight | 110.22 g |
MENB1010 Series
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Input Connector | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | Efficiency | Form | Weight | Weight | Input Type | Output Connector [diameter] | Output Connector [x] | Output Connector | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Voltage - Output | Cord Length | Cord Length | Power (Watts) | Polarization | No Load Power Consumption | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SL POWER / Advanced Energy | 84 mm | 32 mm | 47 mm | 1.26 in | 3.3 " | 1.85 " | IEC 320-C14 | 240 VAC | 100 VAC | 1 A | Level V | Desktop (Class I) | 0.243 lb | 110.22 g | Cord | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | Medical | 40 °C | 0 °C | International | 12 V | 1.5 m | 59 in | 12 W | Positive Center | 300 mW | CE cURus |
SL POWER / Advanced Energy | 84 mm | 32 mm | 47 mm | 1.26 in | 3.3 " | 1.85 " | NEMA 1-15P Multi-Blade | 240 VAC | 100 VAC | 2 A | Level V | Wall Mount (Class II) | 0.243 lb | 110.22 g | Fixed Blade Multi-Blade | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | Medical | 40 °C | 0 °C | North America | 5 V | 1.5 m | 59 in | 10 W | Positive Center | 300 mW | CB CE CSA UL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MENB1010 Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
