IMSA-11600S-35A-GFN4

Active

IRISO USA Inc.

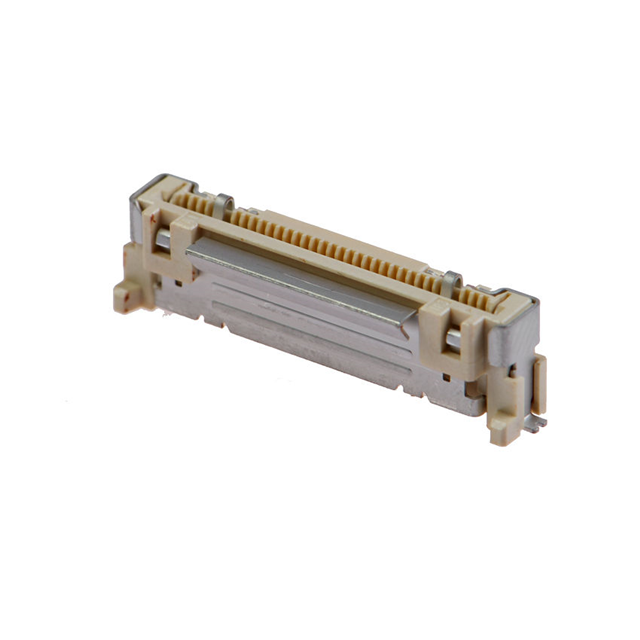

CONN FFC VERT 35POS 0.5MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-11600S-35A-GFN4

Active

IRISO USA Inc.

CONN FFC VERT 35POS 0.5MM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.71
		10	$ 2.30
		25	$ 2.16
		50	$ 2.05
		100	$ 1.96
		250	$ 1.83
		500	$ 1.75
	Tape & Reel (TR)	1000	$ 1.66
		2000	$ 1.58
		3000	$ 1.54
		5000	$ 1.48

Description

General part information

IMSA-116 Series

35 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount

Documents

Technical documentation and resources

Datasheet

Specification	IMSA-11600S-35A-GFN4	IMSA-116 Series

Cable End Type	Notched	Notched
Connector/Contact Type	Contacts, Vertical - 1 Sided	Contacts, Vertical - 1 Sided
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	0.5 A	0.5 A
Features	Solder Retention	Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board	6 mm	6 mm
Height Above Board	0.236 in	0.236 in
Housing Color	Natural	Natural
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	35	10 - 60
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination	Solder	Solder
Voltage Rating	50 V	50 V

Part	Contact Material	Housing Material	Housing Color	Features	Mounting Type	Termination	Contact Finish	Connector/Contact Type	FFC, FCB Thickness	Cable End Type	Height Above Board	Height Above Board	Voltage Rating	Material Flammability Rating	Number of Positions	Pitch [x]	Pitch [x]	Current Rating (Amps)	Flat Flex Type
IRISO USA Inc. IMSA-11600S-35B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	35	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-45A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	45	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-15D-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	15	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-55A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	55 positions	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-30B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	30	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-20A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	20	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-40A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	40	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-20B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	20	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-35A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	35	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-60A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	60	0.5 mm	0.02 in	0.5 A	FFC, FPC
