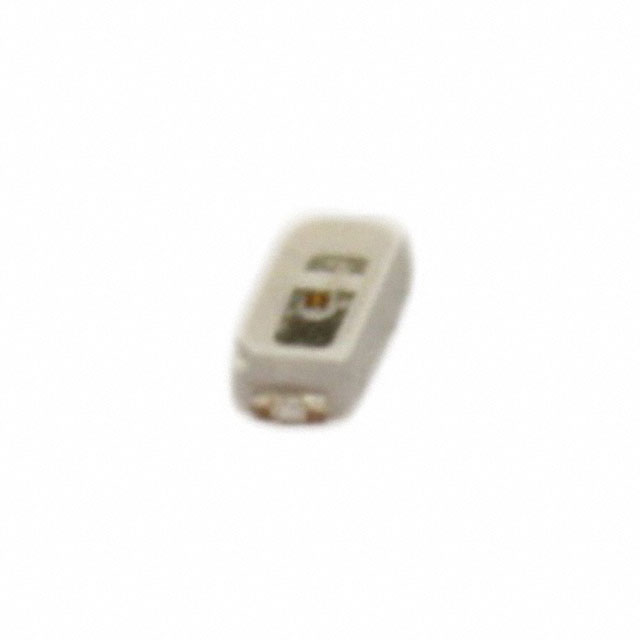

QBLP674-IG
ActiveQT Brightek (QTB)
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP674-IG
ActiveQT Brightek (QTB)
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP674-IG |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.85 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.3 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 900 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.4 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength - Dominant | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| Digi-Reel® | 1 | $ 0.41 | ||
| Tape & Reel (TR) | 2000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 10000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
QBLP674 Series
Green 525nm LED Indication - Discrete 3.1V 2-SMD, Flat Leads
