0801642

Active

Phoenix Contact

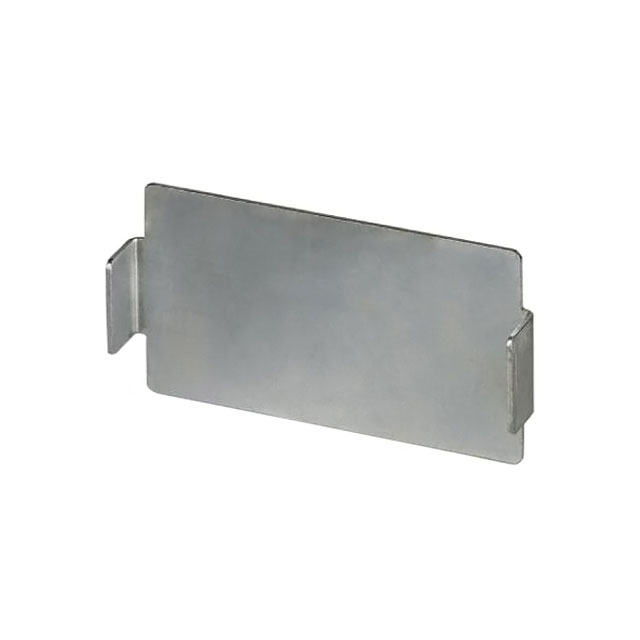

LOCKING PLATE

Search across all available documentation for this part.

Active

Phoenix Contact

LOCKING PLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801642	CES-B16 Series

Accessory Type	-	Snap-Up Frame, Gasket, Flat, Locking Latch, Sealing Frame
Features [x]	4.65 in	2.26 - 4.65 in
Features [x]	118 mm	2.3 - 118 mm
Features [y]	2.24 in	2.24 - 5.04 in
Features [y]	57 mm	4.72 - 128 mm
For Use With/Related Products	PLUSCON CES Snap-up Frame	PLUSCON CES Sealing Frames, PLUSCON CES Cable Sleeves, PLUSCON CES Snap-up Frame
Material	-	Polyamide (PA), Nylon, Rubber

SNAP ON FRAME

Part	Material	For Use With/Related Products	Features [x]	Features [y]	Features [x]	Features [y]	Accessory Type
Phoenix Contact 0801651	Polyamide (PA), Nylon	PLUSCON CES Sealing Frames	2.52 in	5.04 in	64 mm	128 mm	Snap-Up Frame
Phoenix Contact 0801726	Rubber	PLUSCON CES Sealing Frames	2.26 in	4.72 in	57.5 mm	120 mm	Gasket, Flat
Phoenix Contact 0801662	Polyamide (PA), Nylon	PLUSCON CES Cable Sleeves			2.3 ", 58.5 mm	4.72 ", 120 mm	Locking Latch, Sealing Frame
Phoenix Contact 0801642		PLUSCON CES Snap-up Frame	4.65 in	2.24 in	118 mm	57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Locking Plate For PLUSCON CES Snap-up Frame
