6280-6SG-318

Active

Conxall/Switchcraft

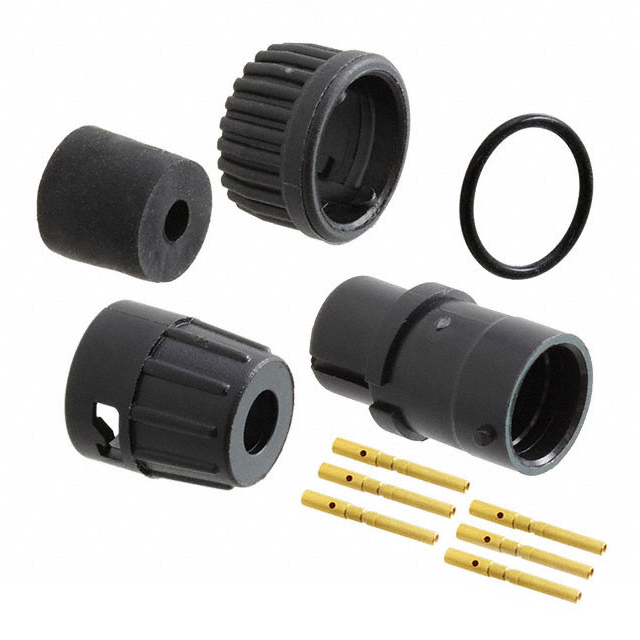

CONN PLUG FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-6SG-318

Active

Conxall/Switchcraft

CONN PLUG FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.22
		10	$ 10.38
		25	$ 9.73
		50	$ 9.27
		100	$ 8.82
		300	$ 8.17
		500	$ 7.88
		1000	$ 7.50

Description

General part information

6280-6SG Series

6 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-6SG-318	6280-6SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	0.21 in
Cable Opening	-	0.19 in
Cable Opening	-	4.83 mm
Cable Opening	-	5.33 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [Max] [custom]	0.2 in	0.18 - 0.2 in
Cable Opening [Max] [custom]	5.08 mm	4.57 - 5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.06 - 4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.16 - 0.18 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-6SG Series

CONN PLUG FMALE 6POS GOLD CRIMP

Part	Backshell Material, Plating	Applications	Contact Finish - Mating	Shielding	Contact Material	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Orientation	Current Rating (Amps)	Color	Primary Material	Ingress Protection	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Mounting Type	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6280-6SG-318	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug	4.57 mm	0.18 in	0.2 in	5.08 mm	Free Hanging (In-Line)	600 V
Conxall/Switchcraft 6280-6SG-311	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug					Free Hanging (In-Line)	600 V	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6280-6SG-519	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug					Free Hanging (In-Line)	600 V				0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6280-6SG-3DC	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug					Free Hanging (In-Line)	600 V
Conxall/Switchcraft 6280-6SG-516	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug	4.06 mm	0.16 in	0.18 in	4.57 mm	Free Hanging (In-Line)	600 V
Conxall/Switchcraft 6280-6SG-513	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Gold	Unshielded	Brass	Backshell	Bayonet Lock	-40 °C	115 °C	Crimp	6	Keyed	Varies by Wire Gauge	Black	Plastic	Weathertight	Female Sockets, Plug					Free Hanging (In-Line)	600 V								0.13 in, 0.15 in	3.3 mm, 3.81 mm
