GC1917 - 6570
ActiveComus International
SWITCH REED SPDT 1A 400V
GC1917 - 6570
ActiveComus International
SWITCH REED SPDT 1A 400V
Description
General part information
GC1917 Series

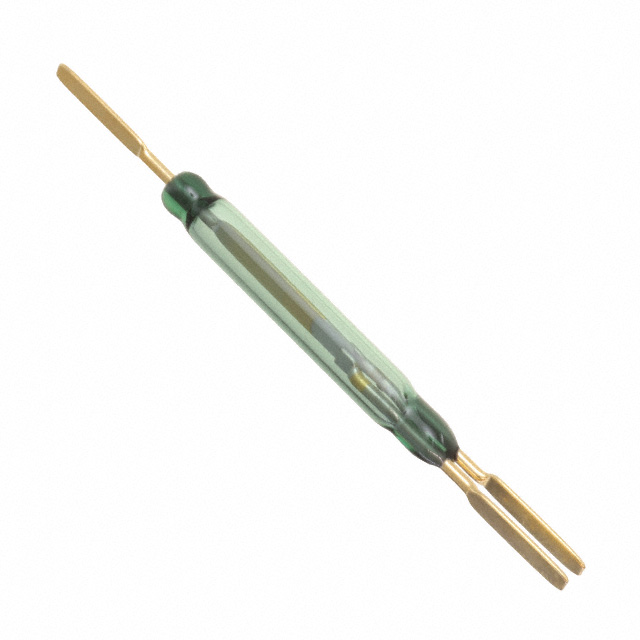

Glass Body Reed Switch SPDT 65 ~ 70AT Operate Range 60W 1A (AC/DC) 400 V Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GC1917 - 6570 |
|---|---|
| Capacitance | 1 pF |
| Circuit | SPDT |
| Current - Carry | 2 A |
| Current - Carry Type | DC, AC |
| Current - Switching (AC/DC) | 1 A |
| Current - Switching Type | DC, AC |
| Length - Overall | 2.75 in |
| Mounting Type | Surface Mount |
| Operate Range (Max) | 70 AT |
| Operate Range (Min) | 65 AT |
| Operate Time | 2 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Power - Rated | 60 W |
| Release Range | 20 AT |
| Release Time | 1.5 ms |
| Size - Body Diameter | 0.22 in |
| Size - Body Length | 1.42 in |
| Termination Style | Axial, Flat |
| Type | Glass Body Reed |
| Voltage - Switching AC | 400 V |
| Voltage - Switching DC | 400 V |
