228BMVARFR

Active

CTS Electrocomponents

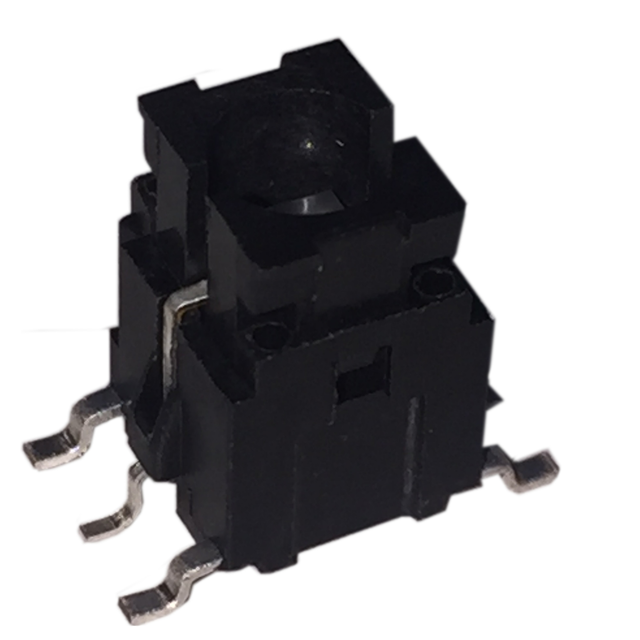

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

228BMVARFR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
		10	$ 1.46
		25	$ 1.35
		100	$ 1.18
	Digi-Reel®	1	$ 1.80
		10	$ 1.46
		25	$ 1.35
		100	$ 1.18
	Tape & Reel (TR)	1200	$ 0.98

Description

General part information

228BMVA Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228BMVARFR	228BMVA Series

Actuator Height off PCB, Vertical	-	9 mm
Actuator Height off PCB, Vertical	-	16.8 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Square Button	Spherical, Round Button, Square Button, Oval Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	Green/Red, LED, Green, Amber/White, Red, Amber/Red, Yellow, Blue, White, Amber
Illumination Voltage (Nominal)	-	1.7 - 3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline	-	6 - 7.5 mm
Outline	-	6 - 7.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

228BMVA Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Actuator Height off PCB, Vertical	Actuator Type	Circuit	Switch Function	Switch Travel	Mounting Type	Outline [x]	Outline [y]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Mechanical Life	Actuator Orientation	Illumination Voltage (Nominal)	Illumination Type, Color
CTS Electrocomponents 228BMVARBFHNR	Illuminated	9 mm	Spherical	SPST-NO	Off-Mom	0.25 mm	Surface Mount	7.4 mm	7.4 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated
CTS Electrocomponents 228BMVARGFJ2MBAR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated	1.7 VDC, 1.9 VDC	Green/Red, LED
CTS Electrocomponents 228BMVAGFJ2MBAR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated	1.9 VDC	Green, LED
CTS Electrocomponents 228BMVAAWFJ1MBR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated		Amber/White, LED
CTS Electrocomponents 228BMVAAWFJ2RBR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated		Amber/White, LED
CTS Electrocomponents 228BMVARFJ2MSBR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated	1.7 VDC	LED, Red
CTS Electrocomponents 228BMVARFJ2WAR	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated		Amber/Red, LED
CTS Electrocomponents 228BMVARFFGR	Illuminated	9 mm	Square Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated	1.7 VDC	LED, Red
CTS Electrocomponents 228BMVARFMMSER	Illuminated	9 mm	Round Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount	6 mm	6 mm	Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated	1.7 VDC	LED, Red
CTS Electrocomponents 228BMVARFR	Illuminated		Square Button	SPST-NO	Off-Mom	0.25 mm	Surface Mount			Gull Wing	-20 C	70 °C	0.05 A, 12 VDC	100000 Cycles	Top Actuated		LED, Red
