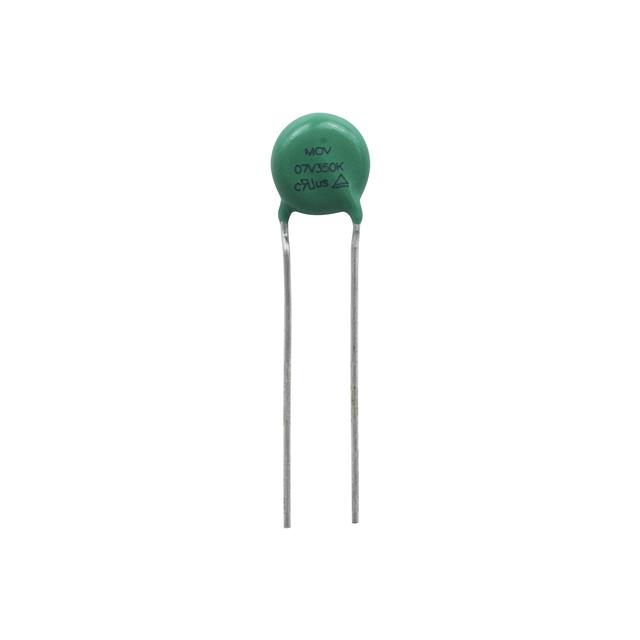

MOV07V350Y

Active

Eaton - Electronics Division

VARISTOR 350 VAC 7MM DISC

Search across all available documentation for this part.

Active

Eaton - Electronics Division

VARISTOR 350 VAC 7MM DISC

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 350 VAC 7MM DISC

Part	Energy	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Number of Circuits	Maximum DC Volts [Max]	Mounting Type	Capacitance @ Frequency	Package / Case [diameter]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Surge	Varistor Voltage (Max) [Max]	Varistor Voltage (Typ)	Maximum AC Volts
Eaton - Electronics Division MOV07V350Y	35 J	350 V	504 V	1	460 V	Through Hole	90 pF	7 mm	Disc	-40 °C	125 °C	1.2 kA	616 V	560 V
Eaton - Electronics Division MOV07V300Y-AP	29 J		423 V	1	385 V	Through Hole	105 pF	7 mm	Disc	-40 °C	125 °C	1.2 kA	517 V	470 V	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

560 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
