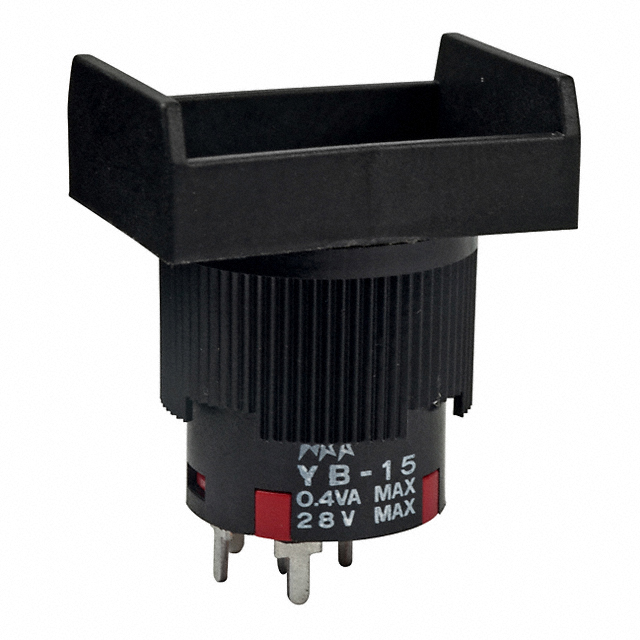

YB15RKG03

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB15RKG03

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15RKG03

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15RK Series

Part	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mechanical Life	Actuator Type	Current Rating (Amps)	Circuit	Type	Voltage Rating - DC	Mounting Type	Features	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches YB15RKW01-CB	No Marking	70 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Red	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles
NKK Switches YB15RKW01-6B-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	3.3 VDC	LED White
NKK Switches YB15RKW01-2CF02-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	2 VDC	Green/Red LED
NKK Switches YB15RKG01-5C-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-5C-JC	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear (Red Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-5C12-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	12 VDC	LED Red
NKK Switches YB15RKW01-5C-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Illuminated Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	1.9 VDC	LED Red
NKK Switches YB15RKW01-EB	No Marking	70 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	3 A	SPDT	Standard	30 V	Panel Mount Front	Tactile Feedback	125 V	Yellow (White Filter/Diffuser)	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles
NKK Switches YB15RKG01-2CF05-JB	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	5 VDC	Green/Red LED
NKK Switches YB15RKG01-5D05-JD	No Marking	50 °C	-25 °C	On-Mom	1000000 Cycles	Rectangular Button	0.4 VA	SPDT	Illuminated Standard	28 V	Panel Mount Front	Tactile Feedback	28 V	Clear	0.11 in	Quick Connect Solder	2.8 mm	16 mm	100000 Cycles	5 VDC	Amber LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.71
		10	$ 10.58
		25	$ 10.07
		50	$ 9.56
		100	$ 9.22
		250	$ 8.65
		500	$ 7.92
		1000	$ 7.00

Description

General part information

YB15RK Series

Pushbutton Switch SPDT Standard Panel Mount, Front
