PIM182

Obsolete

Pimoroni Ltd

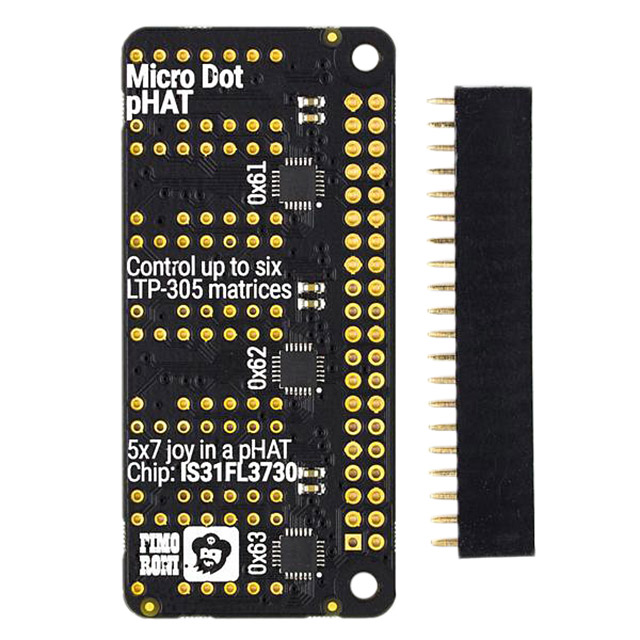

MICRO DOT PHAT (PCB ONLY)

Search across all available documentation for this part.

Obsolete

Pimoroni Ltd

MICRO DOT PHAT (PCB ONLY)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IS31FL3730 LED Dot Matrix 7x5 6-Digit Display Raspberry Pi Platform Evaluation Expansion Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PIM182	IS31FL3730 Series

Contents	Board(s), Header(s)	Board(s), Header(s), Accessories
Function	LED Dot Matrix 7x5 6-Digit	LED Dot Matrix 7x5 6-Digit, LED Dot Matrix 7x5 2-Digit
Interconnect System	Raspberry Pi HAT (40 pin)	Raspberry Pi HAT (40 pin)
Note	Header(s) Not Installed, Display Not Included	Header(s) Not Installed, Display Not Included, Header(s) Not Installed, Assembly Required
Platform	Raspberry Pi	Raspberry Pi
Suggested Programming Environment	Python	Python, C++, MicroPython
Type	Display	Display
Utilized IC / Part	IS31FL3730	IS31FL3730, LTP-305

MICRO DOT PHAT (PCB ONLY)

Part	Contents	Type	Suggested Programming Environment	Interconnect System	Note	Utilized IC / Part	Function	Platform
Pimoroni Ltd PIM182	Board(s), Header(s)	Display	Python	Raspberry Pi HAT (40 pin)	Header(s) Not Installed, Display Not Included	IS31FL3730	LED Dot Matrix 7x5 6-Digit	Raspberry Pi
Pimoroni Ltd PIM526	Board(s), Header(s)	Display	C++, MicroPython, Python		Header(s) Not Installed	IS31FL3730, LTP-305	LED Dot Matrix 7x5 2-Digit	Raspberry Pi
Pimoroni Ltd PIM186	Accessories, Board(s), Header(s)	Display	Python	Raspberry Pi HAT (40 pin)	Assembly Required	IS31FL3730, LTP-305	LED Dot Matrix 7x5 6-Digit	Raspberry Pi
Pimoroni Ltd PIM187	Accessories, Board(s), Header(s)	Display	Python	Raspberry Pi HAT (40 pin)	Assembly Required	IS31FL3730, LTP-305	LED Dot Matrix 7x5 2-Digit	Raspberry Pi
