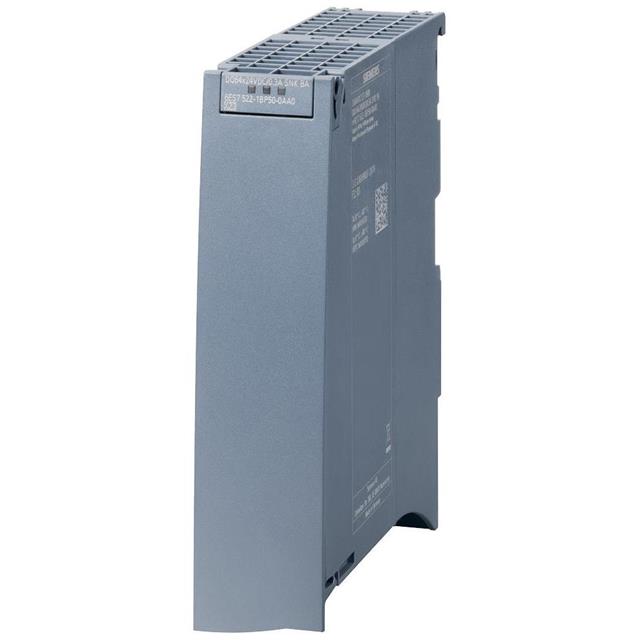

Specification	6ES75221BP500AA0

For Use With/Related Products	SIMATIC S7-1500
Mounting Type	DIN Rail
Number of Outputs	64
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-30 °C
Output Type	Solid State
Termination Style	Screw Terminal
Type	Output Module
Voltage - Supply (Maximum)	28.8 VDC
Voltage - Supply (Minimum)	19.2 VAC/VDC

6ES75221 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Output Type	Type	For Use With/Related Products	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Mounting Type
Siemens 6ES75221BL100AA0	-30 °C	60 °C	32	Solid State	Output Module	SIMATIC S7-1500	19.2 VAC/VDC	28.8 VDC	Screw Terminal	DIN Rail
Siemens 6ES75221BP500AA0	-30 °C	60 °C	64	Solid State	Output Module	SIMATIC S7-1500	19.2 VAC/VDC	28.8 VDC	Screw Terminal	DIN Rail
