R164474120

Active

Radiall USA, Inc.

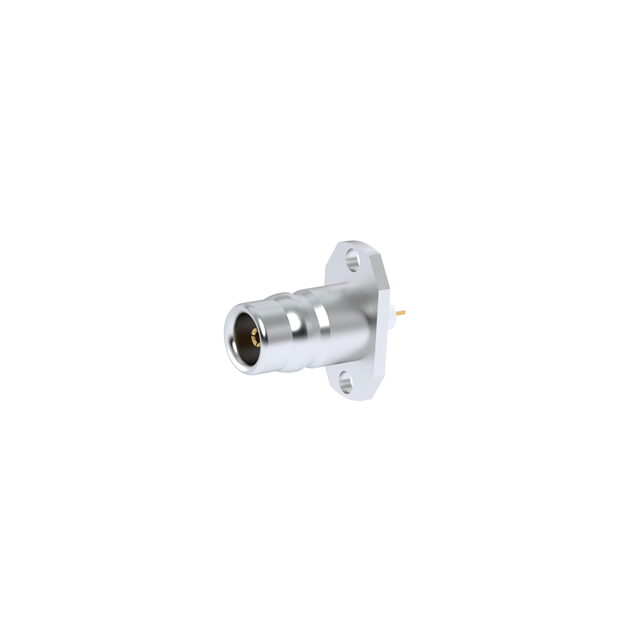

QN / 2 HOLE REDUCED FLANGE RECEP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / 2 HOLE REDUCED FLANGE RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	R164474120

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Center Contact Plating	Connector Style	Features	Impedance	Contact Termination	Shield Termination	Mounting Type	Ingress Protection	Frequency - Max [Max]	Fastening Type	Housing Color	Connector Type	Dielectric Material	Body Material	Number of Ports	Center Contact Material	Body Finish
Radiall USA, Inc. R164474120	1000 VDC	-55 °C	125 °C	Flange	Gold	QN	Extended Insulation	50 Ohms	Solder	Solder	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	6000 MHz	Snap-On	Silver	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Brass	1	Beryllium Copper	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QN Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
